The UL certified LED Panel Lights are designed for North American market with UL, CUL and ETL certified. The side emitting technology, or Edge-lit, created concise appearance, excellent uniform light as well as glare-free viewing effect. This new 2×2 LED panel light can be merged into various decoration styles to build a comfortable and bright living or working environment, so it can be widely used in commercial and residential lighting, typically indoor Lighting in Schools, Universities, Hospital, Conference Room, Home offices, Show Rooms, Factories, Offices, Chain Stores, Supermarkets, Metro Station, Underground Parking lots and so on.
Benefits of UL certified LED Panel Lights
Ultra-thin: 9.3mm thickness
Epistar 2835 SMD LED, CRI>80
High efficacy: up to 125 Lm/Watt
Uniform light output, Edge-lit, instant start, No flickering
Aluminum alloy housing, PMMA light guide plate, PC diffuser
Protection grade IP42; Insulation class II.
High efficiency Constant current LED driver, PF>0.95, AC85-265V Input
Over 50,000 hours actual lifespan, Energy saving
UL/CUL, DLC, FCC certified, DLC4.0 Standard
3 years solid warranty (5 Years warranty upon request)
DALI, push, 0~10V, PWM and Rx Dimming optional

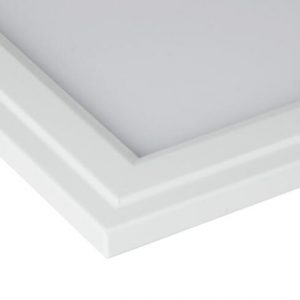

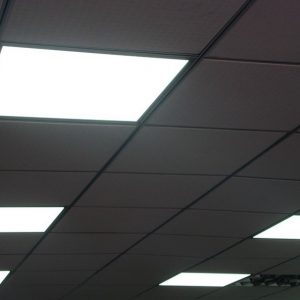

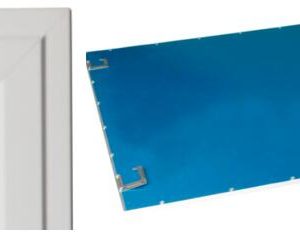

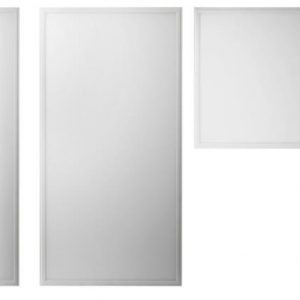

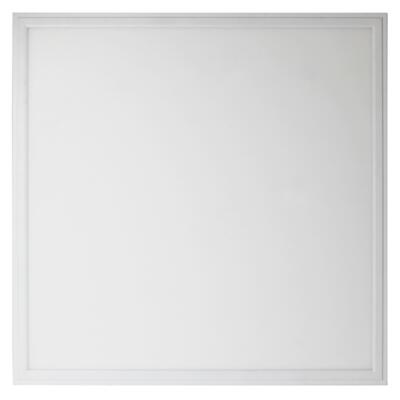

Photos:
Product Structure:
True Color
Technical datas:
2017 UL1 series LED panel lights Super bright 100LM/Watt, Flicker-free
| Length | Model | Color | Size (mm) |
Voltage /Current |
Power (W) |
| 2*2 Feet | PNL2835UL1-600×600-36/40-W/WW/NW | 3000/3500/ 4000/5000K |
602*602*9.3 | DC25-42V 900/1000mA |
36W/ 40W |
| 2*2 Feet | PNL2835UL1-600×600-50-W/WW/NW | 3000/3500/ 4000/5000K |
602*602*9.3 | DC25-42V 1200mA |
50W |
| 2*2 Feet | PNL2835UL1-600×600-55-W/WW/NW | 3000/3500/ 4000/5000K |
602*602*9.3 | DC25-42V 1300mA |
55W |
| 1*4 Feet | PNL2835UL1-1200×300-36/40-W/WW/NW | 3000/3500/ 4000/5000K |
302*1212*9.3 | DC25-42V 900/1000mA |
36W/ 40W |
| 1*4 Feet | PNL2835UL1-1200×300-50-W/WW/NW | 3000/3500/ 4000/5000K |
302*1212*9.3 | DC25-42V 1200mA |
50W |
| 1*4 Feet | PNL2835UL1-1200×300-55-W/WW/NW | 3000/3500/ 4000/5000K |
302*1212*9.3 | DC25-42V 1300mA |
55W |
| 2*4 Feet | PNL2835UL1-1200×600-45/50-W/WW/NW | 3000/3500/ 4000/5000K |
602*1212*9.3 | DC25-42V 1100/1200mA |
45W/ 50W |
| 2*4 Feet | PNL2835UL1-1200×600-60-W/WW/NW | 3000/3500/ 4000/5000K |
602*1212*9.3 | DC25-42V 1400mA |
60W |
2017 UL2 series LED panel lights Super bright 120LM/Watt, Flicker-free
| Length | Model | Color | Size (mm) |
Voltage /Current |
Power (W) |
Lumens (LM) |
| 2*2 Feet | PNL2835UL2-600×600-40-W/WW/NW | 3000/3500/ 4000/5000K |
602*602*9.3 | DC30-42V 1000mA |
40W | 4800Lm |
| 2*2 Feet | PNL2835UL2-600×600-50-W/WW/NW | 3000/3500/ 4000/5000K |
602*602*9.3 | DC30-42V 1200mA |
50W | 6000Lm |
| 1*4 Feet | PNL2835UL2-1200×300-40-W/WW/NW | 3000/3500/ 4000/5000K |
302*1212*9.3 | DC30-42V 1000mA |
40W | 4800Lm |
| 1*4 Feet | PNL2835UL2-1200×300-50-W/WW/NW | 3000/3500/ 4000/5000K |
302*1212*9.3 | DC30-42V 1200mA |
50W | 6000Lm |
| 2*4 Feet | PNL2835UL2-1200×300-60-W/WW/NW | 3000/3500/ 4000/5000K |
602*1212*9.3 | DC30-42V 1500mA |
60W | 7200Lm |
2017 UL3 series LED panel lights Super bright 125LM/Watt, Flicker-free
| Length | Model | Color | Size (mm) |
Voltage /Current |
Power (W) |
Lumens (LM) |
| 2*2 Feet | PNL2835UL3-600×600-36/40-W/WW/NW | 3000/3500/ 4000/5000K |
602*602*9.3 | DC30-42V 900/1000mA |
36W/ 40W |
4500Lm 5000Lm |
| 2*2 Feet | PNL2835UL3-600×600-50-W/WW/NW | 3000/3500/ 4000/5000K |
602*602*9.3 | DC30-42V 1200mA |
50W | 6250Lm |
| 1*4 Feet | PNL2835UL3-1200×300-36/40-W/WW/NW | 3000/3500/ 4000/5000K |
302*1212*9.3 | DC30-42V 900/1000mA |
36W/ 40W |
4500Lm 5000Lm |
| 2*4 Feet | PNL2835UL3-1200×300-45/50-W/WW/NW | 3000/3500/ 4000/5000K |
602*1212*9.3 | DC30-42V 1100/1200mA |
45W/ 50W |
5625Lm 6250Lm |
| 2*4 Feet | PNL2835UL3-1200×300-60-W/WW/NW | 3000/3500/ 4000/5000K |
602*1212*9.3 | DC30-42V 1500mA |
60W | 7500Lm |
Ambient temperature:-20°C~45°C, Surface temperature: 42°C~45°C; Relative humidity 10%-80%RH.
Guide on how to install UL certified LED Panel Lights:
A. Ceiling installation
B. Embedded installation
C. Hanging on the ceiling
WARNING:
YOU MUST HOLD QUALIFICATION CERTIFICATE OF ELECTRICIAN OR ELECRICAL
ENGINEER TO INSTALL THIS PRODUCT.
Packaging:
| Model | Inner Box Size | Carton Size | Q’ty/CTN | G.W. |
| 602*602mm | 645*100*670MM | 660*225*670MM | 4PCS/Carton | 22kg |
| 302*1212mm | 1260*100*370MM | 1280*225*390MM | 4PCS/Carton | 24.8kg |
| 602*1212mm | 1260*100*670mm | 1280*225*690mm | 4PCS/Carton | 42.5kg |
