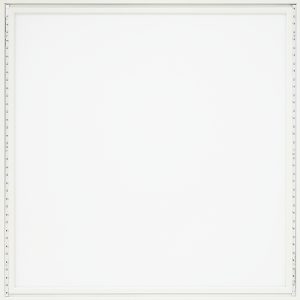

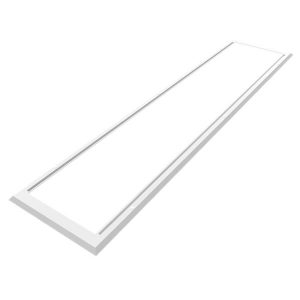

UVC(a subtype of ultraviolet light) The UVC LED Panel Light capable of Sterilization and Disinfection is newly designed with high technical standard for hospital and clean rooms, especially for areas where Coronavirus disease (COVID-19) Pandemic is serious. The light fixture uses UV3535 LED (UVA+UVC) with dual function: Sterilization and general illumination. The sterilization rate is 99.999%. Through intelligent switch control, the dual modes of sterilization and lighting can be freely switched. Through external smart microwave sensor, the sterilization mode can be auto off after motion detected or auto on 10s/20s after no motion detected.

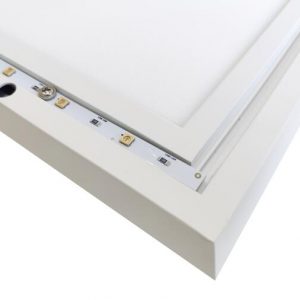

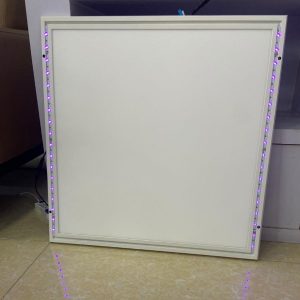

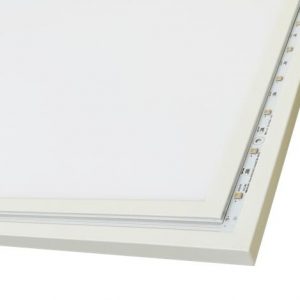

The UVC LED panel light apply hypotenuse edge design with seamless welding process, white paint on surface and antistatic treatment, which makes sure it’s dust free and easy to clean. Compared with traditional Ultraviolet lamps, the UVC LED panel light is completely free of mercury, meeting the requirements of green lighting and health lighting. By using 2-in-1 UV LED lamp (both UVC and UVA are in one LED lamp), it’s judgeable whether UVC is under working through the visible blue light emitted from the 2-in-1 LED lamp.
The UVC LED panel light can be easily surface mounted, embedded by spring clips, recessed mounted or suspended by steel ropes, no need to make big change to existing ceiling structure. The UVC lifetime has up to 8000 hours long lifetime which reduced maintenance costs significantly than traditional sterilization lamps. By using 6063 aviation aluminum frame with high thermal conductivity, the UVC LED light has high heat dissipation rate which not only reduce light decay rate of LED lamps but also reduce a lot of light body temperature than traditional lamps.
For UVC LED Germicidal Lamp Under Cabinet Light Bar, please check our UVC LED Germicidal Lamp Under Cabinet Light Bar
For sterilization during traveling or at home or office rooms, please visit Portable UV LED Disinfection lights Bar.
Features:
Dual function in one fixture: Sterilization and general illumination
Safer sterilization: the sterilization rate up to 99% (See detail in above PDF)
Can eliminate SARS-CoV-2, mycobacterium,hand-foot-mouth virus,fungus,mites,spores,flu virus and bird flu virus.
Safer sterilization: the sterilization rate up to 99% (See detail in above PDF)
Can eliminate SARS-CoV-2, mycobacterium,hand-foot-mouth virus,fungus,mites,spores,flu virus and bird flu virus.
Microwave motion sensor optional
UV3535 LED (UVA+UVC), Mercury Free
Intelligent control with free switching
Frameless design 120° beam angle
Ultrathin 12mm
Light efficacy: 110lm/w
Optional dimming functions：Dali / 0-10V / 2.4G wireless
UV3535 LED (UVA+UVC), Mercury Free
Intelligent control with free switching
Frameless design 120° beam angle
Ultrathin 12mm
Light efficacy: 110lm/w
Optional dimming functions：Dali / 0-10V / 2.4G wireless
Installation: Surface mounting, Suspending or Recessed mounting
CE and RoHS Certified
Warranty: 3 years
Warranty: 3 years
Video How to use UVC LED Panel Light for Sterilization and Disinfection in Hospitals and clean rooms
UVC sterilization process
The absorption of light by bacteria and virus has a peak at 250-280nm. The absorbed ultraviolet light can destroy the DNA structure of bacteria or virus to cause its death or loss of reproduction ability, in this way the purpose of sterilization is achieved. Watch video on how to fight germs with UV-C lighting
UVC Sterilization
Technical datas:
Material: Aluminum + 2.0T PMMA
Typical Sizes: 320*620*12, 620*620*12, 595*595*12, 320*1220*12mm, 295*1195*12mm
SMD 4014, 0.2W,27-29lm Ra:80

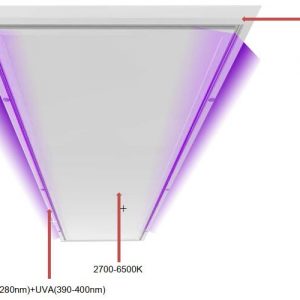

SMD3535,UVA+UVC, UVA:390-400nm,UVC:270-280nm
Sterilization rate: 99%
Input voltage: AC220-240V, AC100-277V
Isolated LED driver,Flicker Free
IP rating: IP44
Protection Class: Class II
Lifetime: W:50000H / UVC:8000H
Operating Temp: 20℃ ~45℃
Storage Temp: -20℃ ~65℃
| LED QTY | Model | Color | Size (mm) |
Voltage /Current |
Power (W) |
Lumens (LM) |
| 144+18(UVC+UVA) | PNL-UVC-320×620-20-W/WW/NW 20W+10W(UVC+UVA) |
2700-6500K + UVC |
320*620*12 | AC 200-240V | 30W | 2400 |
| 144+18(UVC+UVA) | PNL-UVC-300×600-20-W/WW/NW 20W+10W(UVC+UVA) |
2700-6500K + UVC |
295*595*12 | AC 200-240V | 30W | 2400 |
| 192+36(UVC+UVA) | PNL-UVC-620×620-40-W/WW/NW 40W+20W(UVC+UVA) |
2700-6500K + UVC |
620*620*12 | AC 200-240V | 60W | 4500 |
| 192+36(UVC+UVA) | PNL-UVC-600×600-40-W/WW/NW 40W+20W(UVC+UVA) |
2700-6500K + UVC |
595*595*12 | AC 200-240V | 60W | 4500 |
| 240+40(UVC+UVA) | PNL-UVC-320×1220-40-W/WW/NW 40W+20W(UVC+UVA) |
2700-6500K + UVC |
320*1220*12 | AC 200-240V | 60W | 4500 |
| 240+40(UVC+UVA) | PNL-UVC-300×1200-40-W/WW/NW 40W+20W(UVC+UVA) |
2700-6500K + UVC |
295*1195*12 | AC 200-240V | 60W | 4500 |
| 288+72(UVC+UVA) | PNL-UVC-620×1220-60-W/WW/NW 60W+40W(UVC+UVA) |
2700-6500K + UVC |
620*1220*12 | AC 200-240V | 100W | 6200 |
| 288+72(UVC+UVA) | PNL-UVC-600×1200-60-W/WW/NW 60W+40W(UVC+UVA) |
2700-6500K + UVC |
595*1195*12 | AC 200-240V | 100W | 6200 |
Technical data for 620*620 (40W+20W):
| Light color | Power | Light efficiency |
CRI | Beam Angle |
PF | Sterilization space |
Sterilization time |
UV intensity |
| White light | 40W | 100Lm/w | 80 | 120° | >0.9 | |||
| UVC light | 20W | 120° | 20m² | 30 Min | 120uw/cm² |
Attention:
When UV product work for disinfection, DON’T look straight at the UV light. After use, ventilate for 30 minutes.
Human, flora and fauna must leave the scene.
Surface mounting Installations:
Suspending and Recessed/Embedded mounting optional
Applications:

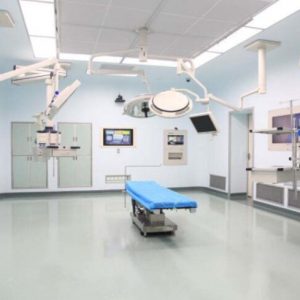

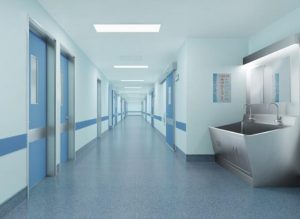

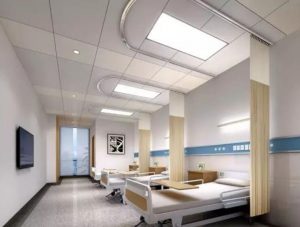

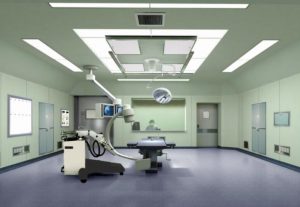

The Haichang Optotech UVC Sterilization and Disinfection LED Panel Light can be widely used in hospitals, healthcare facilities, clinics, pharmaceutical factories, medical malls, biology laboratory, offices, conference rooms, schools, retail stores, super markets, precision processing plants, dust-free workshop, clean rooms, food factories, laboratories, etc..
Hospital LED Lighting Solutions
Lighting is very important to hospitals. Haichang Optotech offers wide range of energy-efficient LED lighting and lighting control systems for hospitals. Our LED lights for hospitals and healthcare facilities can dramatically save energy cost by up to 80% while reducing the load on air conditioning equipment which saves even more. Besides, with over 50,000 hours lifespans, our hospital LED lighting, LED light panels, tube lights, parking lot lights, wall lights, emergency lights and retrofit kits greatly lower the maintenance and replacement cost.
Hospitals and healthcare facilities operate on a 24/7 basis which is why it rely on lighting so much. Long hours of operation everyday result in very short payback periods when these facilities switch to energy-efficient LEDs. Hospital LED lighting is also the only lighting technology that is RoHS compliant and mercury free. This is important for hospitals and healthcare facilities, as they are required by law to reduce the use of mercury within these places. Furthermore, scientific studies have indicated that fluorescent lighting is harmful to a large portion of the population – a problem not associated with healthcare LED lighting at all.
Haichang supply trending hospital LED lighting fixtures and retrofits for use in hospitals, medical clinics and other types of healthcare facilities, such as medical malls, long-term care facilities, medical offices and so on.
