Haichang Frameless LED panel lights have most trending and innovative design. There is No frame at all on the edge, which is very unique than any other Edge-lit Flat LED panel lights with frame that are commonly available in the market. The frameless design creates more concise and delicate looking and more appealing light effect when powered on – Watch this video for actual light effect with single piece or multi pieces put together. The Edge-lit led panel lights have various sizes including 1x1ft(300x300mm), 1x2ft(300x600mm), 2x2ft(600X600mm) and1x4ft(300x1200mm). The power ranges from 12W, 24W, 36W, 40W to 42W. Among these, the typical and most popular is 2x2ft (600x600mm) 36W or 40W. This series of LED panel lights are also DALI dimmable, Triac dimmable and 0-10V dimmable. WAGO fast connector with junction box available upon request.
Benefits of Frameless LED panel lights
Much higher efficiency: over 100Lm/Watt
Epistar 4014/2835 SMD LED, Aluminum alloy shell

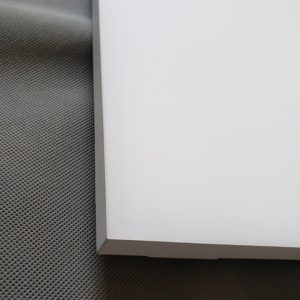

Frameless, Concise and delicate
Widen light distribution area, reduce the dark area blocked by frame
Enhanced light guide panel, much higher light transmission rate
Edge-lit, even and soft light output
DALI, 0-10V, ,Push, PWM, Triac dimming available
Much lower surface temperature than fluorescent grille light
Even and Soft light beam, without the feeling of dazzling, Anti-glare
Over 50,000 hours lifetime, 50%-80% energy saving than fluorescent light
Solid-state, high shock or vibration resistant
Work without ballast, quick instant response
No flickering. No UV or IR radiation
Compliant with CE, Rohs and UL certificates
3~5 years Warranty
See Top Benefits to buy LED Panel Lights

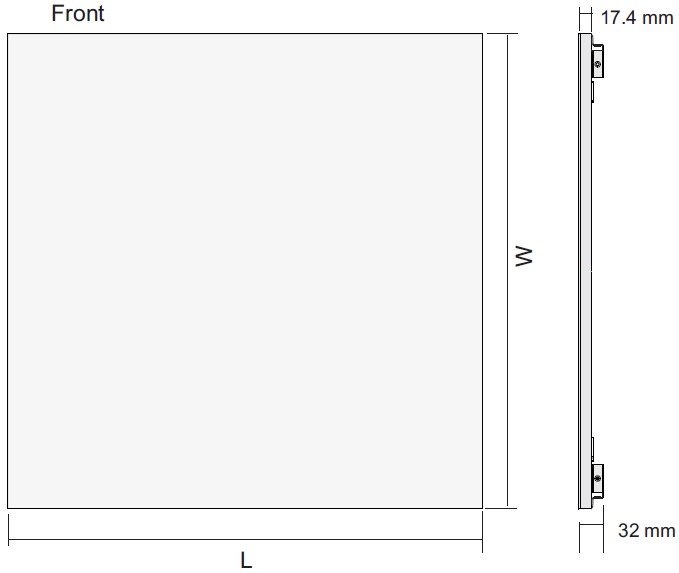

Panel size:
| Type | 300x300mm | 600x300mm | 600x600mm | 620x620mm | 1200x300mm |
| Length (mm) | 295±0.6 | 595±0.6 | 595±0.6 | 620±0.6 | 1195±0.6 |
| Width (mm) | 295±0.6 | 295±0.6 | 595±0.6 | 620±0.6 | 295±0.6 |
Technical Descriptions:
LED type: Epistar 4014/2835 SMD LED
Emitting Colors: White(4000-7000K), Warm white(2200-4000K)
Operating current: 300mA/600mA/900mA/1050mA/1100mA
Operating voltage: DC26~31V, DC33~38V
Power consumption: 12W, 24W, 36W, 40W, 42W
Light-emitting angle: 120 degree
Life: 50000 hours
| Model | CCT | Size (mm) |
Current | CRI | Power | Lumens
(Lm) |
|
| PNL4014-FLIII-300×300-12 | 2200-6500K | 295×295 | 300mA | >80 | 12 watt | 1200/1320 | |
| PNL4014-FLIII -600×300-24 | 2200-6500K | 595×295 | 600mA | >80 | 24 watt | 2450/2640 | |
| PNL4014-FLIII -600×600-36 | 2200-6500K | 595×595 | 900mA | >80 | 36 watt | 3600/3960 | |
| PNL4014-FLIII -600×600-40 | 2200-6500K | 595×595 | 1050mA | >80 | 40 watt | 4000/4400 | |
| PNL4014-FLIII -600×600-42 | 2200-6500K | 595×595 | 1100mA | >80 | 42 watt | 4200/4620 | |
| PNL4014-FLIII -620×620-36 | 2200-6500K | 620×620 | 900mA | >80 | 36 watt | 3600/3960 | |
| PNL4014-FLIII -620×620-40 | 2200-6500K | 620×620 | 1050mA | >80 | 40 watt | 4000/4400 | |
| PNL4014-FLIII -620×620-42 | 2200-6500K | 620×620 | 1100mA | >80 | 42 watt | 4200/4620 | |
| PNL4014-FLIII -1200×300-36 | 2200-6500K | 1195×295 | 900mA | >80 | 36 watt | 3600/3960 | |
| PNL4014-FLIII -1200×300-40 | 2200-6500K | 1195×295 | 1050mA | >80 | 40 watt | 4000/4400 | |
| PNL4014-FLIII -1200×300-42 | 2200-6500K | 1195×295 | 1100mA | >80 | 42 watt | 4200/4620 |
High CRI
Light Distribution Graph:
Illumination Cone Curve:
LED Lumen Attenuation:
| Operating time(hours) | Lumen decrease (%) |
| 5,000 | 2.3 |
| 10,000 | 5.4 |
| 20,000 | 11.5 |
| 50,000 | 25.2 |
DALI Dimming:
PWM digital dimming, standard DALI logarithmic dimming curve.
High frequency PWM dimming, no flicker in video camera.
Dimming range from 0-100%, LED start at 0.1% possible.
Power factor > 0.99, Efficiency > 93%.
Short circuit / Over-temperature / Over load / Over voltage protection.
DALI bus standard: IEC62386-101, 102, 207.
Compliant with Safety Extra Low Voltage standard.
Suitable for indoor environments.
DALI, Push Dim.
TRIAC Dimming:
Dimming interface: Tricac/ELV, Push DIM
Apply to leading edge and trailing edge TRIAC dimmers
PWM digital dimming, no alter LED color rendering index
Dimming range: 0~100%, LED start at 0.1% possible.
Short circuit / Over-temperature / Over load / Non-load protection.
Non-load output voltage 0V to prevent damages to LED caused by poor contact.
Class 2 power supply. Full protective plastic housing.
Compliant with Safety Extra Low Voltage standard.
Suitable for indoor environments.
0-10V Dimming:
Dimming interface: 0-10V, 1-10V, 10V PWM or Push button
PWM digital dimming, no alter LED color rendering index.
Dimming range: 0~100%, LED start at 0.1% possible.
Short circuit / Over-temperature / Over load / Non-load protection.
Class 2 power supply. Full protective plastic housing.
Suitable for indoor environments.
Power supply for Haichang Frameless LED panel lights
MeanWell driver/ LIFUD/ BOKE/ Shengchang Drivers are the driver brands we usually used for our led panel lights. These drivers are available with Waterprooof or Non-waterproof versions and they are UL/TUV/CE certified.
Applications of Frameless LED panel lights:
Direct replacement of traditional T8 fluorescent light or Phillip Grille light; can be hanged from the roof or mounted into roof or wall or surfaces of any other objects.
Widely used in commercial lighting areas or home or office indoor lighting areas such as shopping mall, supermarket, conference room, exhibition hall, hotel, office, school, library, hospital, etc..
Packaging:
300x300mm Frameless LED panel light:
Outer carton: 405*350*380mm
Quantity: 5 units/carton
Net weight: 1KG/unit
600×300 Frameless LED panel light:
Outer carton: 690*350*370mm
Quantity: 5 units/carton
Net weight: 2.6KG/unit
600×600 Frameless LED panel light:
Outer carton: 760*670*350mm
Quantity: 5 units/carton
Net weight: 5KG/unit
Installation Guide for Haichang Frameless LED panel lights:
A. Hanging/Suspension installation
B. Embedded Installation by Spring clip
C. Hanging& split jointed installation
