The 100W Super Power LED Floodlight is equivalent to 250W Metal halide floodlight or High Pressure Sodium lamps.
This series of Super Power LED Floodlight adopts modular design with compact structure. The unique HDT high power cooling technology with Fin style heat sinking structure ensures low temperature during operation. The 92% high reflective optical reflector made of pure aluminum gives out uniform light without feeling of glaring. The secondary light distribution beam angle of 60 degree can be served as high bay and floodlight. The pure copper heat pipe makes sure good thermal conductivity while the breather on the fixture can avoid moisture. The surface with high grade electrofusion treatment can prevent salt fog and therefore the fixture can be used in damp environment.
Super bright, High bright SMD LED, Ra80
Uniform light, no glare, no spot light
HDT high power cooling technology with pure copper heat pipe
Fin fastening, seamless fitting, PC cooler heat sinking
Breather design to avoid moisture
Bracket angle 216° adjustable
4mm tempered glass with 93% light transparent rate
Die casting housing, IP65 protection
High power factor, high efficiency, low degradation
Compact, light weighted, Easy to install
Flickering free, mercury free, lead free, UV free
50000 hours lifetime, 50% energy saving
Input voltage: AC90-305V, 50-60Hz
3 years warranty, Compliant with CE & RoHS certificate
Widely used in outdoor flood lighting like stadiums, industrial workshops, squares, golf courses, docks, ships, bridges, historical buildings, airports, subways, landmark buildings and other landscape lighting, etc..
Model No. HC-SPFL-100W
Input power: 100W
Power Factor: >0.95

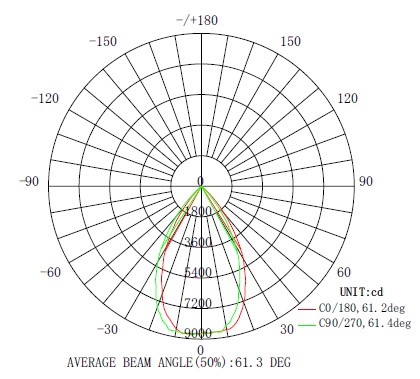

Beam Angle ：60°
CCT : WW: 3000K / NW : 4000K / PW : 6000K
Luminous Flux : WW : 7500LM / NW : 8000LM / PW : 8500LM
Input Voltage: AC100-240V(50 / 60Hz)
1: CCT range: WW:（2700- 3300K）NW（3800- 4300K）PW（5700- 6500K）
2: input power tolerance: ±10%
3: luminous flux tolerance: ±10%
Through the 720 H accelerated aging test, high and low temperature prediction in the rated under the working conditions after 35000H, will provide an average 70% optic maintenance ratio (L70).
Ambient Temp.: -20―+50℃
Storage Temp: -40―70℃
Relative humidity: 10―95%
Atmosphere Pressure: 70-106KPa
Heat sink Mode: Natural Heat Conduction
Protection degree: IP65
Type A: Hooking
Excellent choices for those areas where fixed light beam is needed, no need to adjust the angle.
1. Install the hook first on where the floodlight will be set up, insure the hook can bear the weight at least 50kgs.
2. Hang the floodlight to the hook
3. Connect the wire to the power, Brown wire stand for L, Blue wire stand for N, Yellow and green wire stand for ground
Type B: Bracket Installation
Through beam angle adjustment, the floodlight could work as spot light and be used in shopping mall and other places where need special illumination.
2. Have the LED Floodlights installed on the wall or ground: punch holes in the wall or on the ground, mounted expansion screw then install the LED flood lights with nuts.
3. Connect the light to the power, Brown wire stand for L, Blue wire stand for N, Yellow and green wire stand for ground
4. Switch on the power and make sure the light is on. Installation completed.
Net Weight： 6.4Kg
Gross weight: Carton size: L475*W475*H510(mm), 1pcs/Carton
Gross weight: 8.7kg
