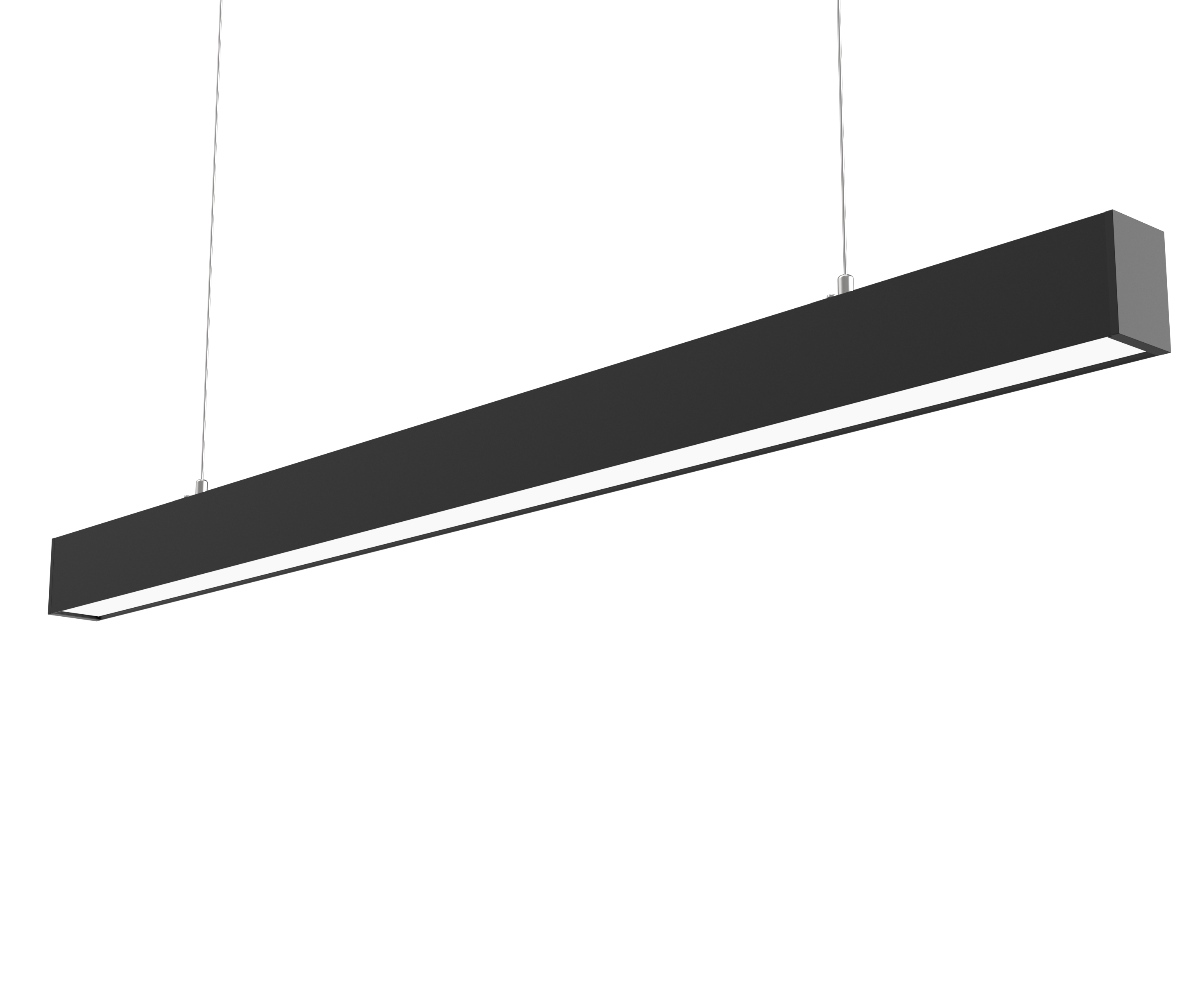

The 2 feet long 20W AL5070 LED linear light Fixture uses 6063-T5 diecast aluminum, diecast aluminum end cap and imported diffuser cover. With branded 2835 LEDs and imported PC diffuser, this linear light fixture delivers high lumen output and uniform light distribution without any visible light dots. It saves a lot of energy and reduces electricity cost compared to conventional lamps. Various optical diffusers are available for choice: prismatic diffuser, opal diffuser, grille diffuser and honeycomb diffuser. There are three mounting means available for various mounting sites: recessed/embedded mounting, pendant/hanging/suspended mounting and surface/wall mounting. It can be daisy chain linkable to any length without light leaking. These 2ft long fixtures can be widely used in home lighting office lighting, shopping mall lighting, school lighting, garage lighting and other lighting applications in private or public areas.
Features:
Super bright, beautiful looking
6063-T5 diecast aluminum: excellent heat sinking
Customizable Color Temperature: 4 CCT tunable/adjustable(3000K/4000K/5000K/6000K) through the CCT switch
3 Power mode tunable/adjustable

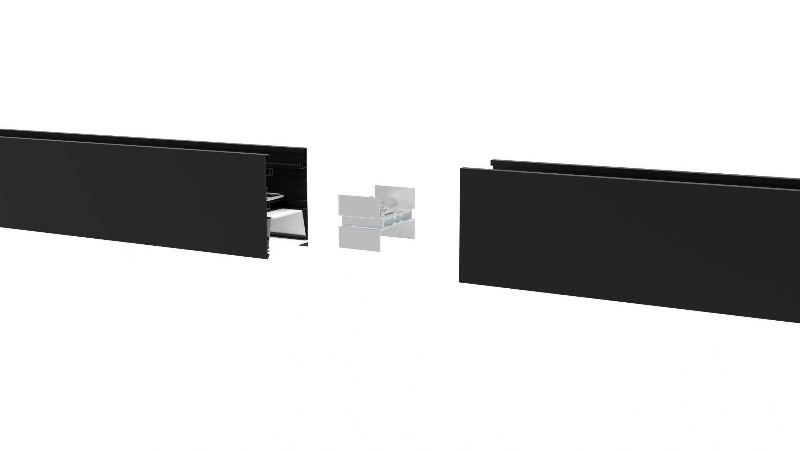

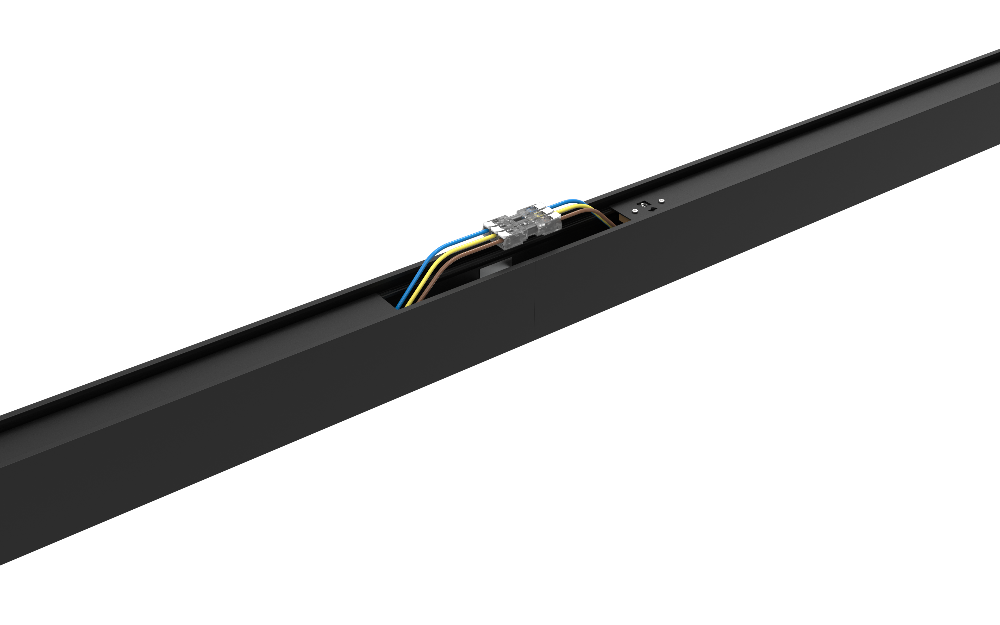

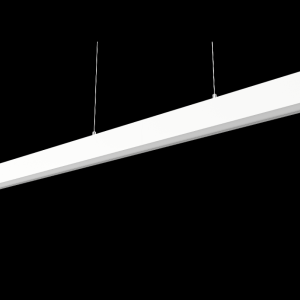

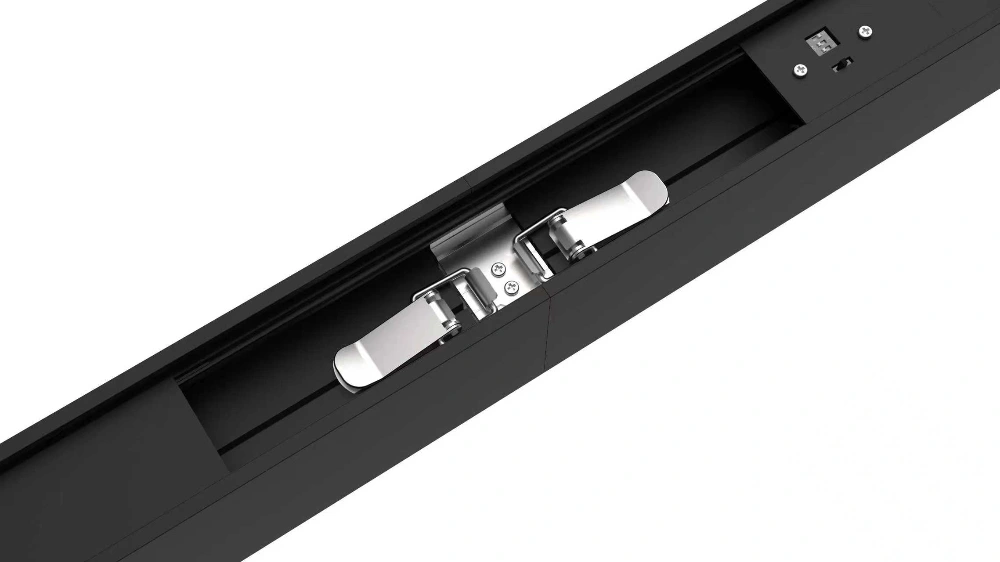

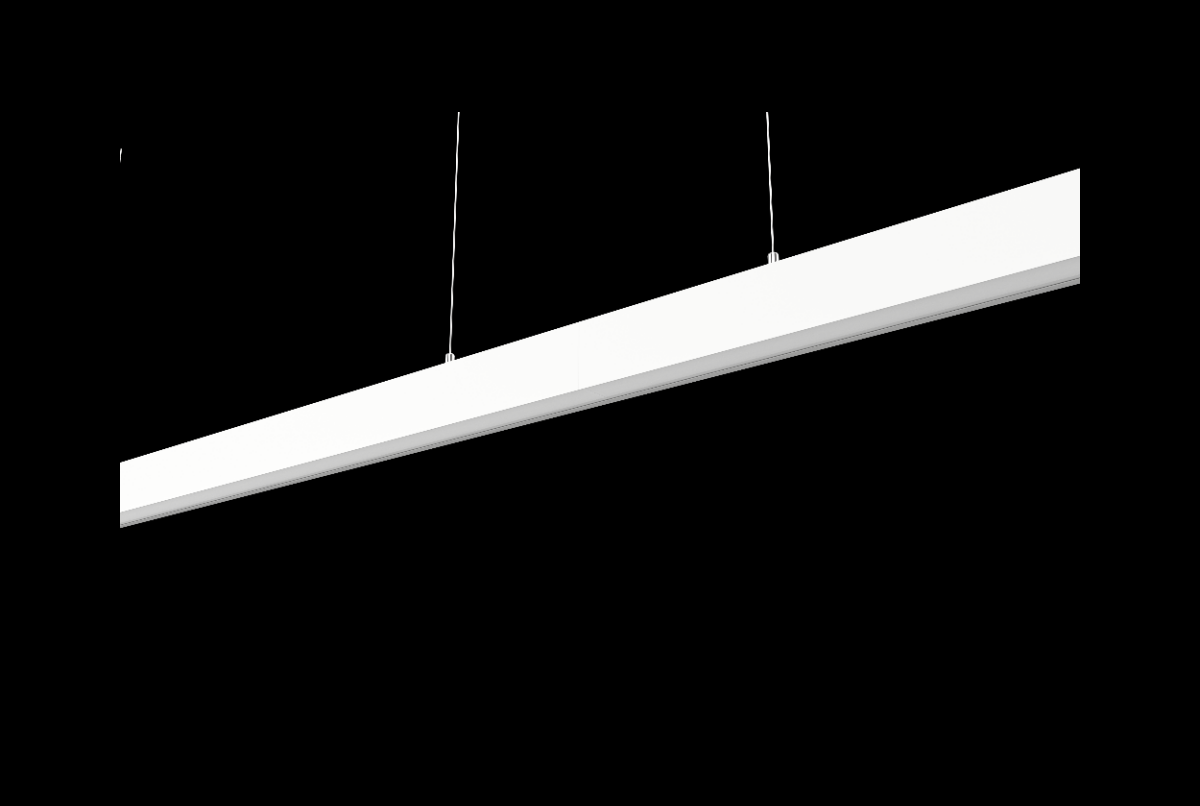

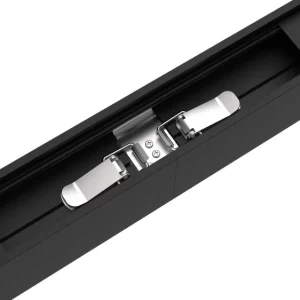

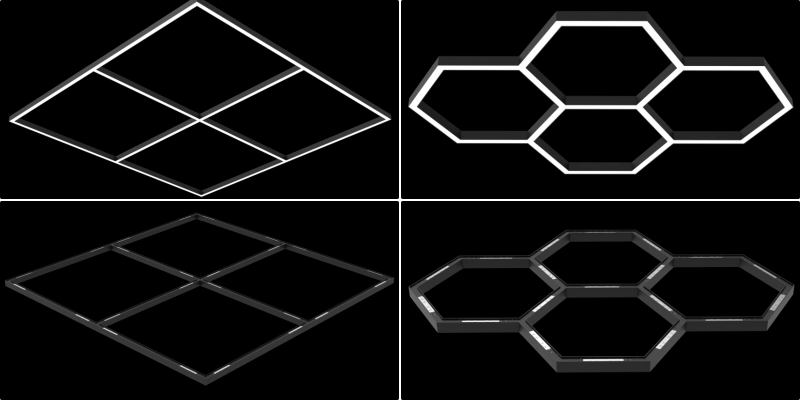

Daisy chain linkable: 60 meters Max linkable length or Power<2400W

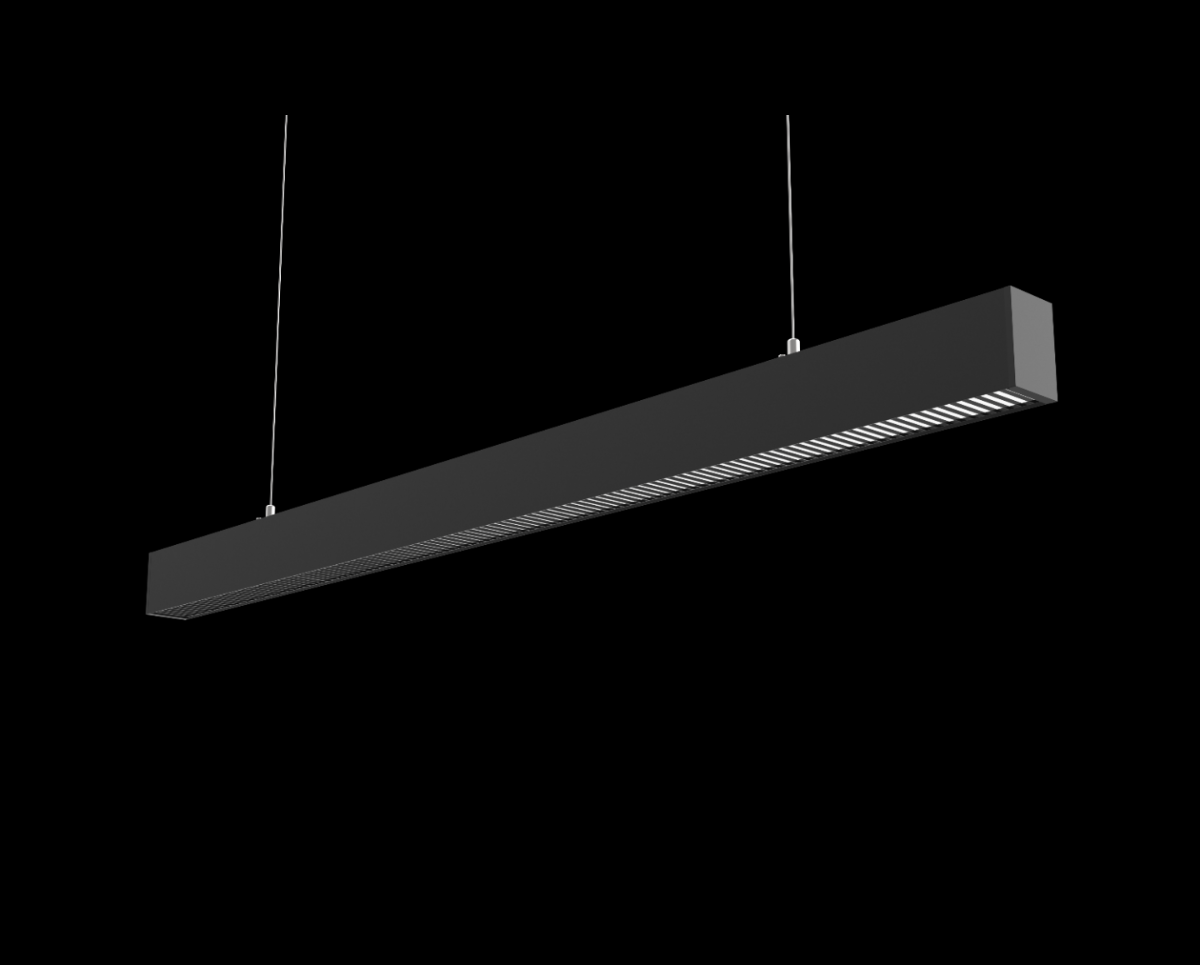

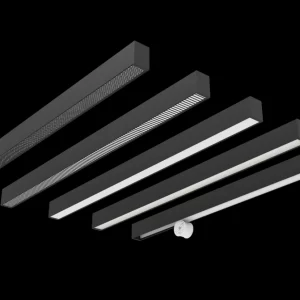

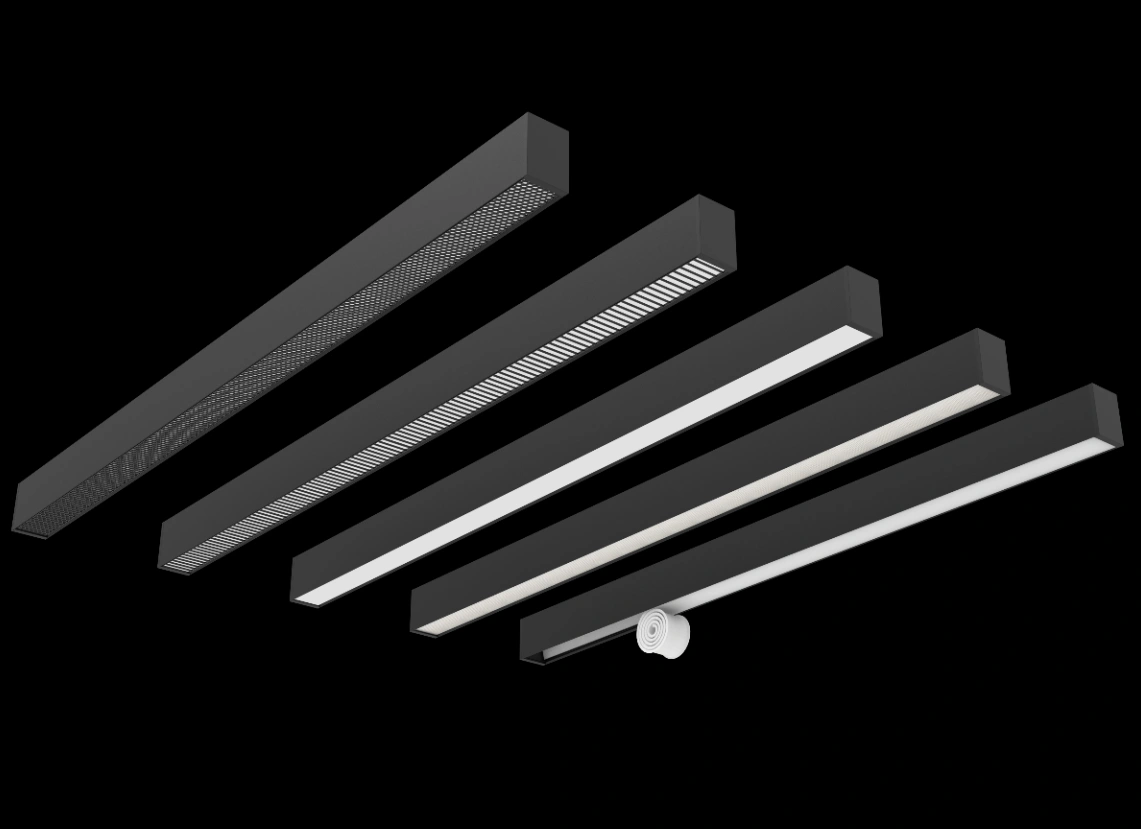

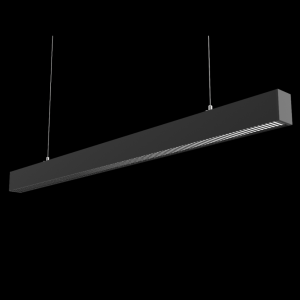

Optic cover: prismatic diffuser, opal diffuser, grille diffuser and honeycomb diffuser
DIY option: led strips can be added at the overhead of the fixture to increase brightness and achieve directional light
DALI/Triac/0-10V dimming optional
Constant current driver with proved stability
High efficiency illumination
White paint, black paint or Grey paint for your choice
Easy Installation: Comes with a hardwire cable and all necessary mounting spare parts for quick and hassle-free installation.
CE, RoHS, SAA certified
5 years warranty
Specifications:
Model: LL-AL5070-20W

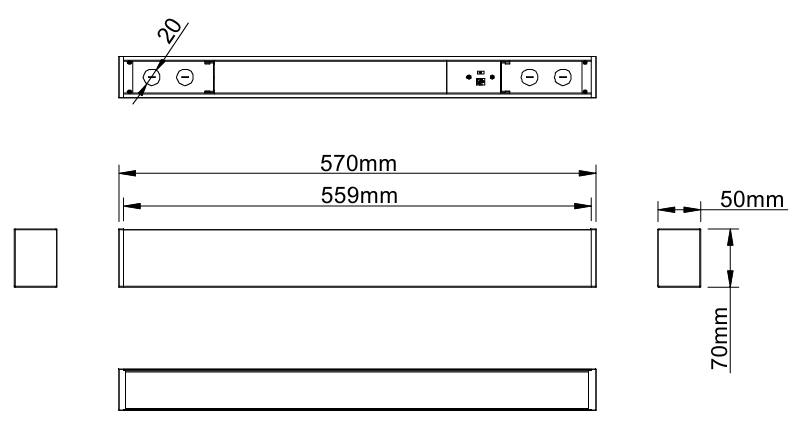

Dimension: 570*50*70mm
Light Source: 2835 SMD LED
Lifetime: L70B30@>100000h, L80B20@>50000h
Power: 20W (13W/16W adjustable)
CCT: 2700~6500K
Color: White / Black / Grey
CRI: 80+, 90+
SDCM: <6
Luminous Flux: 2600Lm(130Lm/Watt). Optional: 100Lm/Watt, 150Lm/Watt
Dimension: 570*50*70mm
Light Source: 2835 SMD LED
Lifetime: L70B30@>100000h, L80B20@>50000h
Power: 20W (13W/16W adjustable)
CCT: 2700~6500K
Color: White / Black / Grey
CRI: 80+, 90+
SDCM: <6
Luminous Flux: 2600Lm(130Lm/Watt). Optional: 100Lm/Watt, 150Lm/Watt
Beam angle: 60°/75°/95°/115°, or DA30(Double asymmetric optic 30°, same as Philips’ Maxos LED Performer)
Housing materials: 6063-T5 diecast aluminum
Housing finish: Powder Spraying
End Caps: Diecast Aluminum
Optic cover: prismatic diffuser, opal diffuser, grille diffuser, honeycomb diffuser
Optic cover material: Polycarbonate (PC)

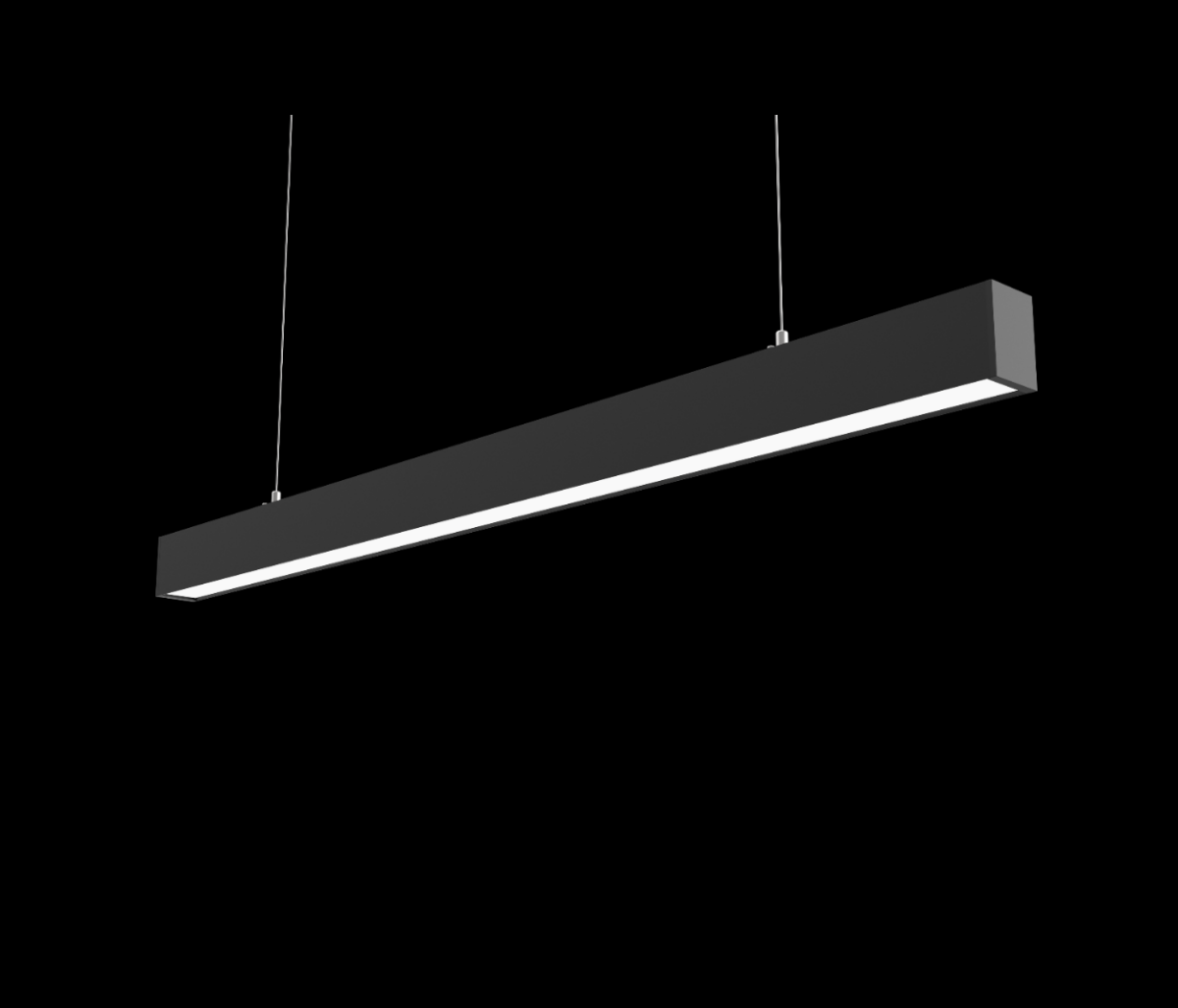

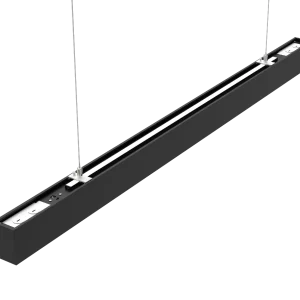

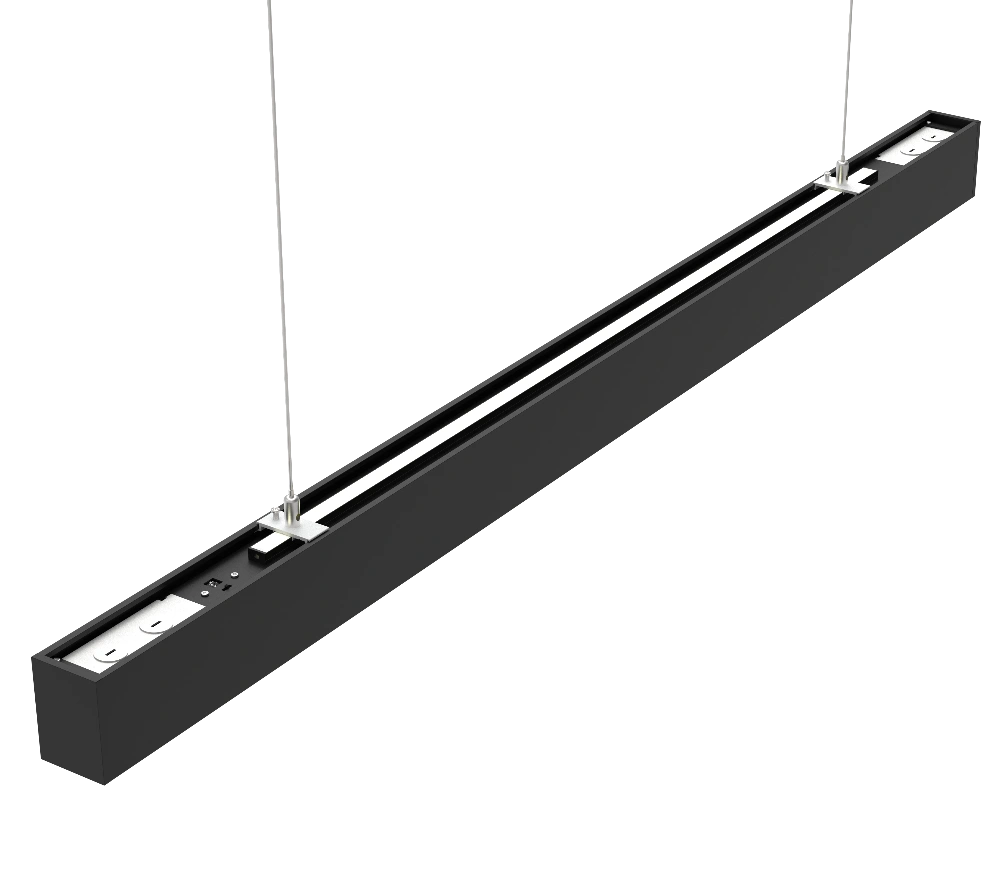

Installation: recessed/embedded mounting, hanging/suspended/pendant mounting and surface/ceiling/wall mounting
Driver Solution: Constant Current driver
Electrical class: Class I
Mains Voltage: 100-277V
Power Factor (PF): >0.9
Driver efficiency: >90%
SurgeProtectionOptions(KV): 2KV
Protection Grade: IP20
IK Rating: IK08
Working Temperature: -20℃~+45℃
Working humidity: 10% to 90% RH

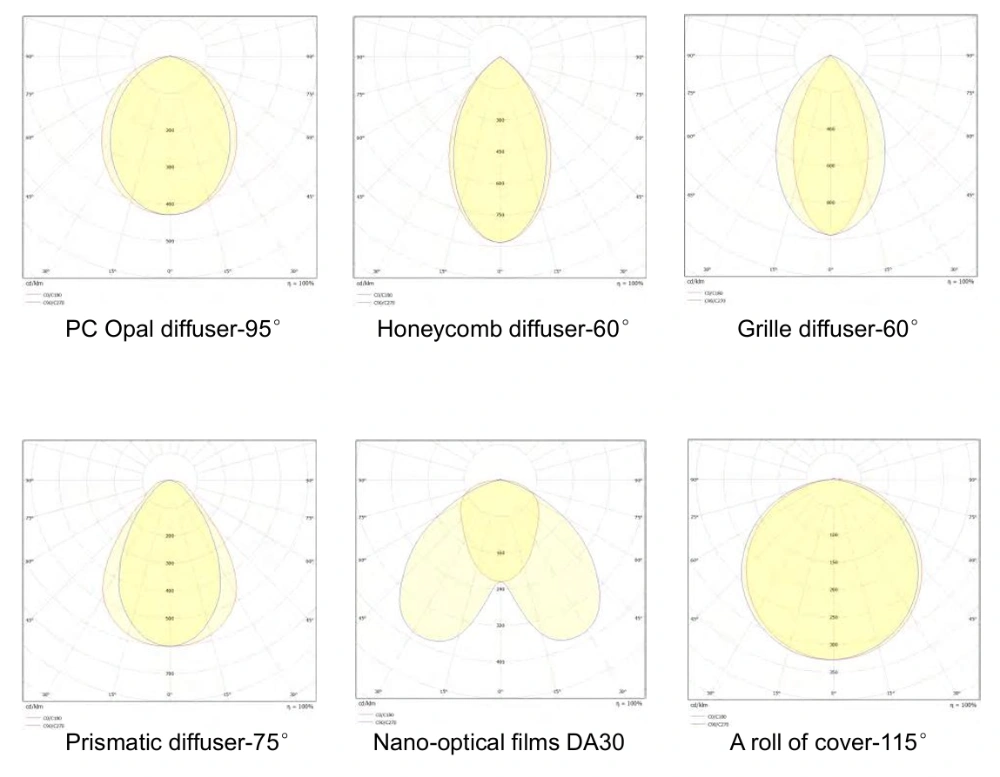

Light Distribution:

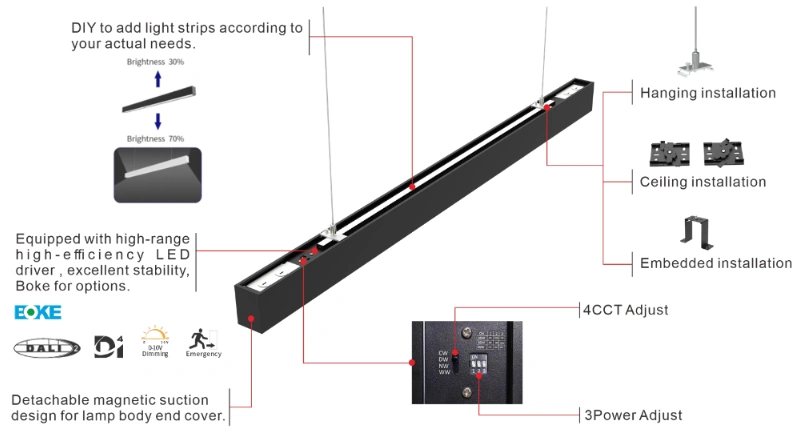

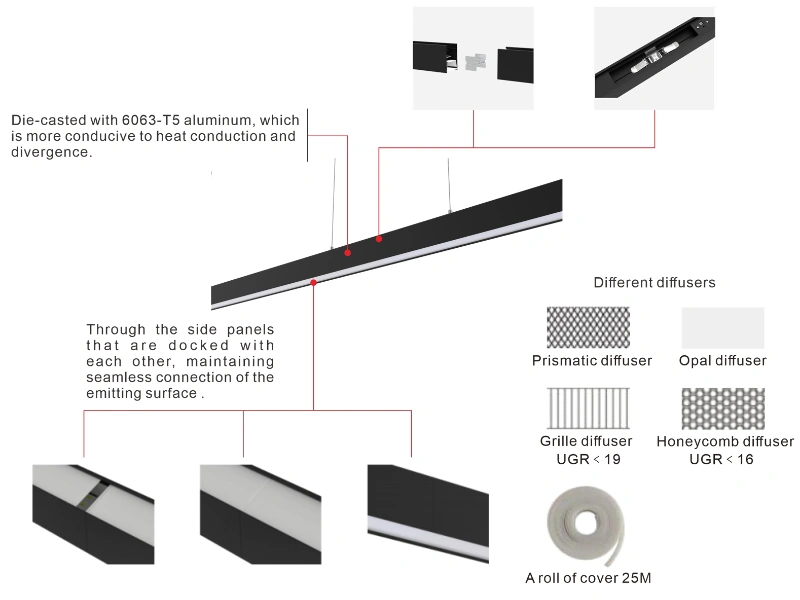

Structure:

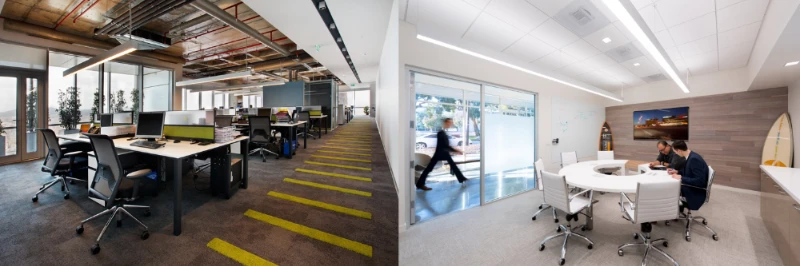

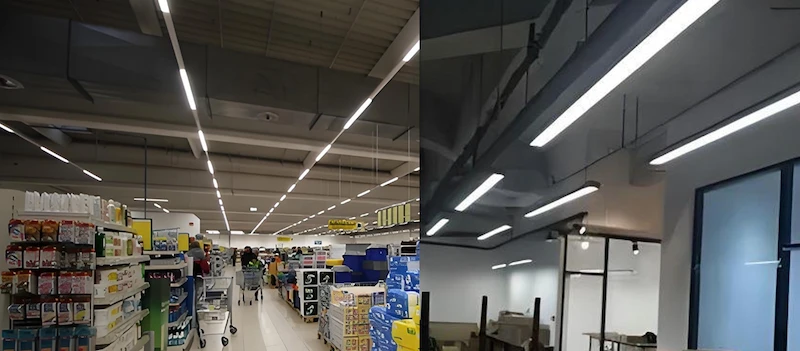

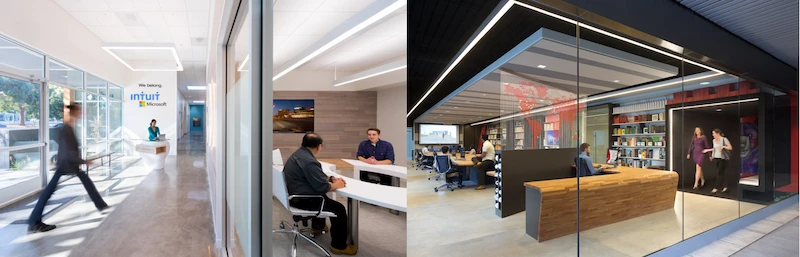

Projects:
