The Modular series LED linear light carries built-in Trunking system. With over 9000LM light output, it is designed to replace 2x58W or 2x36W T8 fluorescent fixtures. Various lights can be connected seamlessly to over 100m continuously. By adopting PMMA optical lens, various beam angles are available. The Linear Luminaire is 100% anti-glare and there’s very even light output without dark area.Various Dimming available: 0-10V dimming, PWM dimming and DALI dimming.
Over 9000LM light output, perfect for lighting in space with over 5M height.
Equivalent to 2x58W or 2x36W T8 with cover
Modular design, support continuous seamless connection or single unit use.
Multi Circuit design
Preloaded cable, multi-circuit design, each circuit can be switched on/off separately
Perfect Viewing effect
Linear design, good looking, over 100m continuous connection
Quick install, suspending or recessed mounting available.
Continuous connection, Seamless connection
Support connection to 210m by 144units. Comfortable, Even light output without dark area.

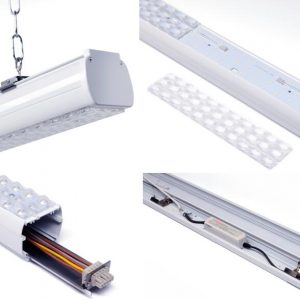

Professional design, Built-in Trunking rail, Flexible application
Preloaded 3-phase 5-wire power cable，each phase can be switched on/off separately
High quality material
Using 6063 extruded aluminum alloy to make sure 100% straightness.
Precise light distribution, Perfect light quality
PMMA optical lens, various beam angles available. Consistent CCT, CRI>80, Anti-glare
|Type||High power||Standard power|
|to replace 2*58W/2*49W||to replace 2*36W/2*24W|
|Max.Connection||72 units||144 units|
|Max.Connection||108 meters||210 meters|
|Light distribution||2D Batwing 20°, 3D wide beam 30°，
6D wide beam 60°, 9D Nature beam 90°
|LED driver||Meanwell / China brand|
|Preloaded cable||3-phase 5-wire power cable, 8A rated phase current|
|Material||Extruded aluminum 6063-T5, PMMA lens|
|Electrical grade||Class I|
|Input voltage||100-277VAC/200-240VAC 50/60Hz|
|Install types||suspending, ceiling mounted,
hanging ropes, hanging rod
