LED Batten lights 3rd generation

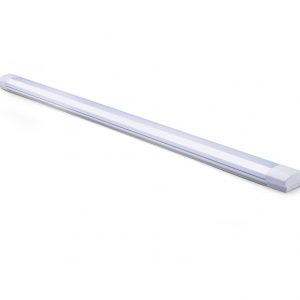

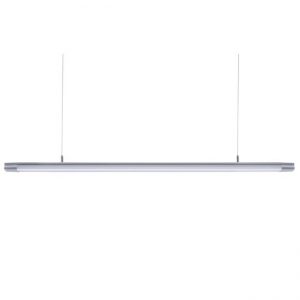

This is the 3rd generation intelligent LED batten lights manufactured by Haichang Optotech. This linear light fittings are typically surface mounted by screw fix and have 2ft, 4ft, 5ft and 6ft lengths. This batten lights can also be suspended mounted by steel ropes to act as pendant light fixtures. It has unique robust design, integrated LED light source and are easily linkable to continuous row.

This luminaire is a cost effective alternative to traditional T8 fluorescent light fittings and are typically used in wide applications in commercial and industrial lighting in public areas. With built-in Microwave sensor carrying detection angle of 120° and detection distance of 8m, this smart LED Batten lights brings cost effective and energy efficient solution to areas like parking lots, walkways, ATMs, factories and warehouse where dependable on-demand light is required.

Benefits of LED Batten lights:

Unique trending design
Microwave sensor built-in: detection angle 120°, detection distance: 8m
Starting time: <0.5sec
120Lm/watt, 80% lumen maintenance @6000H, Ra80
Premature failure rate @1000h: 0
Color consistency level: <6SDCM
Easily Daisy Chain up to 96m (320 feet)
Easy and fast installation
Housed by pure aluminum alloy, good heat dissipation, IP44
Sizes: 2ft, 4ft, 5ft, 6ft
No decrease of light output in cold areas
Trending optical design, Fireproof PC cover, Beam angle 120°
50,000 hours lifespan, Energy saving 50-80%
Solid-state, high shock resistant. No flickering.
Compliant with CE, RoHS
3 years Warranty

Dimensions:

Model	Length (A) (mm)	Width (B) (mm)	Height (C) mm
2ft/600mm	600	72	38
4ft/1200mm	1200	72	38
5ft/1500mm	1500	72	38
6ft/1800mm	1800	72	38

Technical Descriptions:

PF>0.93, THD<15%
Power Efficiency≧0.88
Temperature:
Operating -20~+40℃
Storage -40~+60℃

Model	Tube Dimension	Power	Input voltage	CCT	Lumens 100LM/W	Lumens 120LM/W
BL-GENIII-060W20-2835	0.6M(600*38*72mm)	20±1W	AC100~265V	2700-6500K	1900-2100LM	2300-2500LM
BL-GENIII-120W40-2835	1.2M(38*72*1200mm)	40±2W	AC100~265V	2700-6500K	3800-4100LM	4600-4900LM
BL-GENIII-150W60-2835	1.5M(38*72*1500mm)	60±5W	AC100~265V	2700-6500K	5800-6100LM	7000-7300LM
BL-GENIII-180W72-2835	1.8M38*72*1800mm)	72±6W	AC100~265V	2700-6500K	7100-7300LM	8500-8800LM

The maximum number of linkable continuous connection:

Input Voltage	Power	Length	Wire	Max Qty (pcs)
230VAC	20W	600mm	2.5mm²	160
230VAC	40W	1200mm	2.5mm²	80
230VAC	60W	1500mm	2.5mm²	55
230VAC	62W	1800mm	2.5mm²	45

Applications:

The 3rd generation LED batten light is designed for application in residential and commercial lighting such as offices, meeting rooms, hotels, supermarkets, shopping malls, libraries, factories, warehouses, schools, colleges, airports, bus stations, theaters, MTR stations, Exhibition centers, Toll stations, Gymnasiums and other public areas.

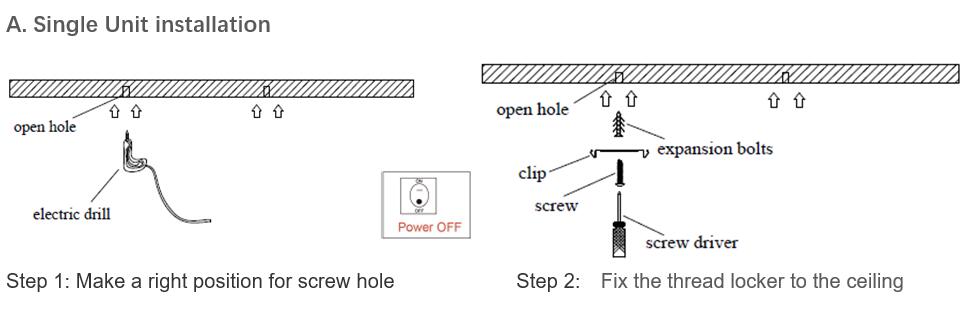

Installation Guide

Download PDF about how to install LED batten light

See Video on how to install LED batten light to ceiling surface

Packaging details:

Length (mm)	Pieces/CTN (pcs)	N.W. /pcs (kg)	G.W./CTN (kg)
2ft (600mm)	20	0.4	8.6
4ft (1200mm)	20	0.7	15.41
5ft (1500mm)	20	0.9	19.34
6ft (1800mm)	12	1	12.93
