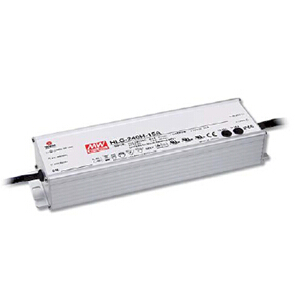

MEANWELL UL listed Waterproof LED power supply 35W – 350W for LED lighting
Product Features:
Safety standard:
UL8750, CSA C22.2 No. 250.0-08, EN61347-1, EN61347-2-13 independent IP65 or IP67, J61347-1, J61347-2-13 approved ;
Design refer to UL60950-1, TUV EN60950-1
Built-in active PFC function
High efficiency up to 95%
Universal AC input range, up to 305VAC
Cooling by free air convection
Protections: Short circuit / Overload / Over voltage/Over temperature
Suitable for various outdoor LED lighting applications
Waterproof Protection standard: IP67
Working temperature: -40℃ to +70℃
Working Humidity: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40℃ ~ +80℃, 10 ~ 95% RH
Compliant with RoHS, CE, UL certificates
5-year warranty
Technical details:
| Output Wattage | Protection Degree |
Input Voltage | Output Voltage |
Power Factor |
Dimension (mm) |
| 60W | IP67 | 90 ~ 264VAC | DC12V/ DC24V |
0.95 | 171*61.5*36.8mm |
| 100W | IP67 | 90 ~ 264VAC | DC12V/ DC24V |
0.95 | 220*68*38.8mm |
| 150W | IP67 | 90 ~ 264VAC | DC12V/ DC24V |
0.95 | 228*68*38.8mm |
| 240W | IP67 | 90 ~ 264VAC | DC12V/ DC24V |
0.95 | 244.2*68*38.8mm |
| 320W | IP67 | 90 ~ 305VAC | DC12V/ DC24V |
0.95 | 252*90*43.8mm |
