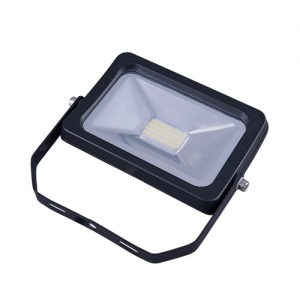

Mini Curve LED Floodlight 20W

Haichang Mini Curve LED floodlight 20W apply ultrathin design. The Mini Curve LED floodlight is available with Flip Chip COB LED or SMD 2835 LED, with efficacy up to 90-100LM/W. Black and White housing optional for choice. It’s compliant with CE, ROHS and SAA standard.

Features:

Patent curve design, beautiful appearance
Flip Chip COB or SMD 2835 LED, super bright

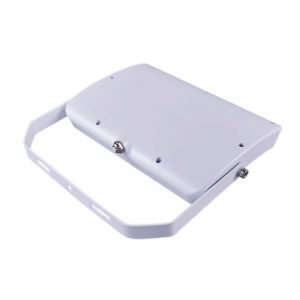

Drainage holes in backside for better waterproof
Honeycomb-design inside, better heating dissipation
Die-cast Aluminum alloy light body, tempered glass
High efficiency constant current driver
IP65, Waterproof & Weatherproof
Anti-acid, anti-corrosion, no UV or IR radiation
50,000 hours long lifespan, low power consumption, Eco-friendly
Compliant with CE and RoHS standard
2 years warranty

Applications:

Haichang Mini Curve LED floodlights 30W are designed to be used in landscape lighting, stage lighting, billboard lighting, history building, outdoor wall lighting and greening commercial lighting, such as: billboards, buildings, lawns, supermarkets, shopping malls, exhibition halls, sculptures, symbols, gymnasiums, squares, trees, advertisement boards, toll stations, gas stations, parking lots, factories, warehouses, docks, etc..

Technical details:

Power: 20W,
Luminous flux: 1800Lm
Dimension: 223*197*36mm

Light source: 2835 SMD LED, CRI>80
Luminous Efficiency: 90lm±10%/W
Color Temperature: 2700K-7000K
Lens: Glass or polycarbonate（PC）
Beam Angle: 120°
Housing Material: Aluminum alloy ADC12
Housing color: Black/White
Cable: 0.3M Naked Cable with 3*0.75 or 1M 1*1.0H05RN-F Rubber Cable available
Voltage: AC220-240V, 50-60Hz
Operating Temperature: -20℃～+45℃
Dimming options: Dimmable available for PIR and Micro Wave
Power factor: ≥0.90
Appliance Class: Class I
Mounting means: Wall Mount, Ceiling Mount
Liftspan: ≥50,000hrs
IP Grade: IP65
Certificates: CE, RoHs, SAA
Warranty: 2 Years

Dimension:

Illumination Cone Curve:

Integrating Sphere Test report:

Packaging of Mini Curve LED floodlight 20W:

N.W.: 1.2kg
White box size: 252*220*40mm
QTY/Carton: 10pcs
Carton size: 272*232*452mm
Gross weight: 13.6kg

Attention:

If outside cable or cord of lamps is damaged, it must be replaced by qualified professionals to avoid risk;
Cut down the input power supply once the lamp works abnormally.
