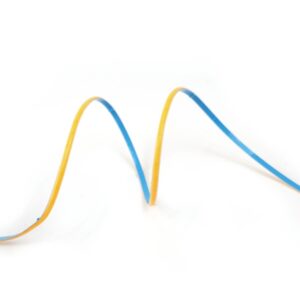

Outstanding features of Mini COB LED Tape Slim LED Strip lights FREE CUT 480LED DC5V DC12V DC24V lighting:
Super narrow strip width, ideal for special area installation
3mm / 4mm / 5mm COB strip width
Mini COB with extreme flexible bending diameter
SDCM≤3 to ensure color consistency
180°beam angle and high density of LEDs deliver uniform lighting
Dotless, 0 Hot Spots
Free cut or Field Cuttable
Dimmable
3-5 years warranty
Technical data of Mini COB LED Tape Slim LED Strip lights, FREE CUT 4MM 480LED:
Cuttable length: Free cut
PCB width: 4mm
Input voltage: DC24V
CRI(Ra): >90
CCT: 2700K/3000K/4000K/6000K
Power: 5W
Light efficiency: 80Lm/W
Luminous Flux: 400Lm
Max. run length: 5M
Beam angle: 180°
LED quantity: 480LEDs/m
Working temperature: -25℃~+45℃
LED lifetime: 50,000 hours
IP degree: IP20, IP65

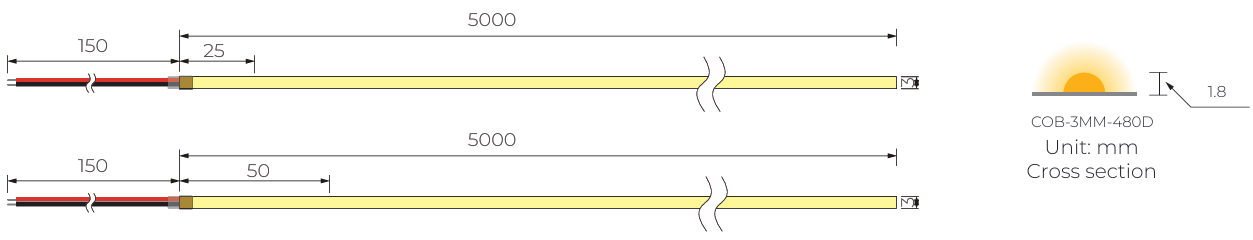

Technical data of Mini COB LED Tape Slim LED Strip lights, 3MM 480LED:
Cuttable length: 25mm, 50mm
PCB width: 3mm
Input voltage: DC12V, DC24V
CRI(Ra): >90
CCT: 2700K/3000K/4000K/6000K
Power: 5W
Light efficiency: 80Lm/W
Luminous Flux: 400Lm
Max. run length: 5M
Beam angle: 180°
LED quantity: 480LEDs/m
Working temperature: -25℃~+45℃
LED lifetime: 50,000 hours
IP degree: IP20, IP65
Technical data of Mini COB LED Tape Slim LED Strip lights, 4MM 480LED:
Cuttable length: 12.5mm, 25mm, 50mm
PCB width: 4mm
Input voltage: DC5V, DC12V, DC24V
CRI(Ra): >90
CCT: 2700K/3000K/4000K/6000K
Power: 5W
Light efficiency: 80Lm/W
Luminous Flux: 400Lm
Max. run length: 5M
Beam angle: 180°
LED quantity: 480LEDs/m
Working temperature: -25℃~+45℃
LED lifetime: 50,000 hours
IP degree: IP20, IP65
Technical data of Mini COB LED Tape Slim LED Strip lights, 5MM 480LED:
Cuttable length: 25mm, 50mm
PCB width: 5mm
Input voltage: DC12V, DC24V
CRI(Ra): >90
CCT: 2700K/3000K/4000K/6000K
Power: 5W
Light efficiency: 80Lm/W
Luminous Flux: 400Lm
Max. run length: 5M
Beam angle: 180°
LED quantity: 480LEDs/m
Working temperature: -25℃~+45℃
LED lifetime: 50,000 hours
IP degree: IP20, IP65
Applications:
The Mini COB LED Tape Slim LED Strip lights FREE CUT 480LED DC12V DC24V lights are widely used in:
1. Architectural decorative lighting for canopy, corridor, window, archway, bridge edge lighting
2. Back lighting or edge lighting for signage letters and channel letters
3. Cove lighting, concealed lighting in home rooms or yard
4. Replace traditional under cabinet lights
4. Decorative lighting for festivals, events, shows, exhibitions
5. Contour lighting: stairway, aisle
6. DIY lighting for indoor use
