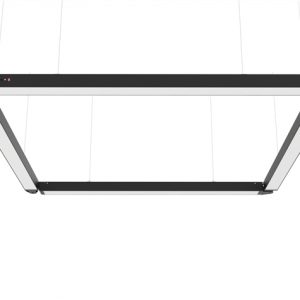

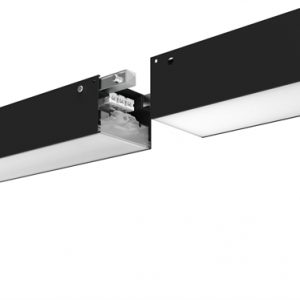

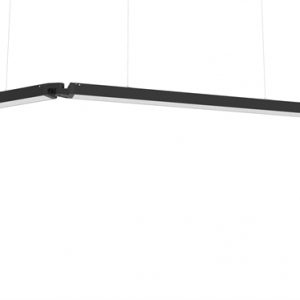

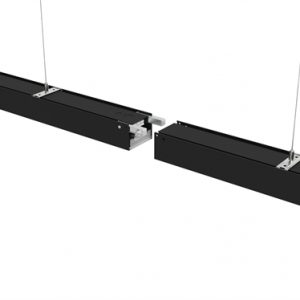

This linkable series LED linear lights are featured by linkable design with bright and soft light beam. Multiple fixtures can be linked together to create a daisy chain series by plugging one fixture to another directly. It can be suspended from ceilings with suspension kits to serve as pendant light fixtures. The length is available with 2ft, 4ft and 5ft.
One unit of 5 feet 60 watt such luminaire emits 9000 lumens of cool white, natural white, or warm white illumination. The color and power can be freely changeable. Pair with optional microwave motion sensor, increased energy savings can be achieved. Remoted control, DALI & 1-10V dimming, Tuya WIFI, and Emergency function optional.
Features:
Linkable up to 60 meters
Newest patent design
3 CCT changeable, 0-10V Dimming, DALI Dimming, TUYA WIFI
Innovative optical design: 30*90°, 60*110°,90*110°,120*120°, P18°, 2P18°, PC Cover 120°
SMD 2835 Ra>80, R9>0, UGR<19, SDCM<6
100Lm+/130Lm/150Lm per Watt, 80% lumen maintenance @6000H
Total Harmonic Distortion (THD)<15%
Easy and fast installation
Housed by pure aluminum alloy, good heat dissipation, IP44
Solid-state, high shock resistant. No flickering.
Compliant with CE, RoHS, SAA certificate
50,000 hours lifespan, Energy saving 50-80%
100,000 times switching cycle before failure
5 years Warranty
Dimensions:
| Model | Length (L) (mm) |
Width (W) (mm) |
Height (H) mm |
| 2ft/600mm | 586 | 70 | 51.4 |
| 4ft/1200mm | 1158 | 70 | 51.4 |
| 5ft/1500mm | 1444 | 70 | 51.4 |
Technical datas:
CCT Range: 2700-6500K
PF>0.93, THD<15%
Temperature:
Operating -20~+45℃
Storage -40~+60℃
PF>0.93, THD<15%
Temperature:
Operating -20~+45℃
Storage -40~+60℃
| Model | LED type |
Tube Dimension （L*W*H) |
Power | Lumens | Input voltage |
| LL-7050-060W20-2835 | 2835 SMD | 0.6M (51.4*70*589mm) |
20±1W | 2000±100Lm/ 2600±100Lm/ 3000±100Lm |
AC100~265V |
| LL-7050-120W40-2835 | 2835 SMD | 1.2M (51.4*70*1158mm) |
40±2W | 4000±100Lm/ 5200±100Lm/ 6000±100Lm |
AC100~265V |
| LL-7050-150W60-2835 | 2835 SMD | 1.5M (51.4*70*1444mm) |
60±5W | 6000±100Lm/ 7800±100Lm/ 9000±100Lm |
AC180-265V |
Applications:
Compared with the IP66 Linkable Tri-proof led light, this type of linkable LED linear light is designed for application in indoor places, such as shops, conference rooms, meeting rooms, offices, tunnels, parking lots, garages, basement, workshops, warehouses, factories, Schools, Colleges, Universities, laundry rooms, utility rooms and corridors in residential buildings and commercial lighting projects.
Packaging:
| Length (mm) |
Pieces/CTN (pcs) |
N.W. /pcs (kg) |
G.W./CTN (kg) |
Carton size
(mm) |
| 2ft (600mm) | 12 | 0.90 | 11 | 690*340*195 |
| 4ft (1200mm) | 12 | 1.68 | 21 | 1260*340*195 |
| 5ft (1500mm) | 12 | 2.12 | 26 | 1545*340*195 |
