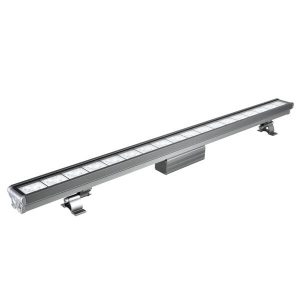

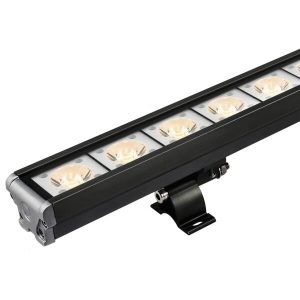

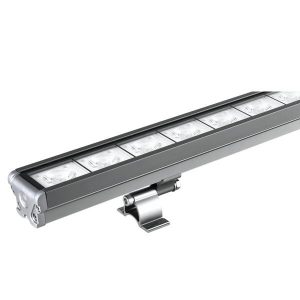

This series of LED Wall Washer Light X15CY1 is featured by integrated waterproof structure, resin free sealing and integrated heat sinking design, with power consumption range from 18W, 24W, 36W, 48W to 54W. The outstanding 6063 Aluminum light body and tempered glass make this linear LED wall washer light robust with IP67 waterproof protection and corrosion resistant for harsh outdoor environment. The outdoor LED light fixture is typically used to wash the walls, illuminate the ambience and create spectacular visual effect for commercial or residential buildings or landscape places such as rivers, parks, bridges, squares, art galleries, clubs, hotels, stages and exhibition halls.
Haichang LED wall washers are designed to create spectacular displays which washes your wall or feature in eye-catching colour changing light. With a remote controller, you can change the display instantly. The LED wall washer can change colors while projecting. The RGB LED wall washer lights can project 16.7 million colors and change the color by programming the LED wall washer the way you want to.
Features:
Integrated waterproof structure, resin free sealing, high elastic silicone sealing material, anti-aging rubber sealing ring.
IP67 protection, corrosion resistant, fully waterproof, vapor free, mist free.
Integrated heat sinking design, higher heat conductivity, lower light decay, higher lifetime.
6063 Aluminum profile light body with anodized surface and electrostatic spraying treatment, low surface temperature.
High strength tempered glass, impact resistant, high transmission rate
Professional optical design with high efficiency PMMA lens, light transmission rate up to 95%. Light distribution angle customizable. Bright and uniform light output with true colors.
Osram/Cree/Epistar/Bridgelux high power LED as light source, energy efficient
Stainless steel mounting bracket, light projection angle adjustable
Fast and simple installation. Connecting by standard signal cord and power cord
Stainless steel screw, rust and acid resistant. Anti-aging rubber wire.
Color: Seven static single color, seven color changing, jumping, fading, chasing, etc..
RGB Control mode: internal control or External control by DMX512 controller
Ambient Temperature: -25°to 60°
Life Span: > 50,000 hours
2 years warranty, CE and RoHS certified
Technical details:
Light source: SMD3030/3535/5050, 80~125Lm/W
Input Voltage: AC100V~AC240V
Working voltage: DC24V
Beam Angle: 15~60 degree
CCT: 2400-6500K
Projection Distance: 10-50 meters
IP degree: IP67 Waterproof & dustproof
Insulation grate: Class I
Temperature range for outdoor applications: -30℃ to 60℃
Custom length available upon request
| Model | Power (W) |
Viewing angle |
Voltage (V) |
Dimension
(mm) |
IP degree |
Color |
| WW-18/24/36/48/
54W-24-X15CY1 |
18W
24W 36W 48W 54W |
3°,20°,30°,
45°,60°, 10*60° |
DC24V
/AC224V |
1000*65*45 (L*W*H) |
IP67 | RGB
/WW /CW |
Applications:
These Integrated Waterproof LED Wall Washer outdoor Lights X15CY1 are widely used in stage lighting, accent lighting, architectural lighting, landscape lighting, flood lighting, wall wash lighting, in areas including commercial buildings, bars, entertainment plazas, hotels, resorts, parks, museums, art galleries, etc.
