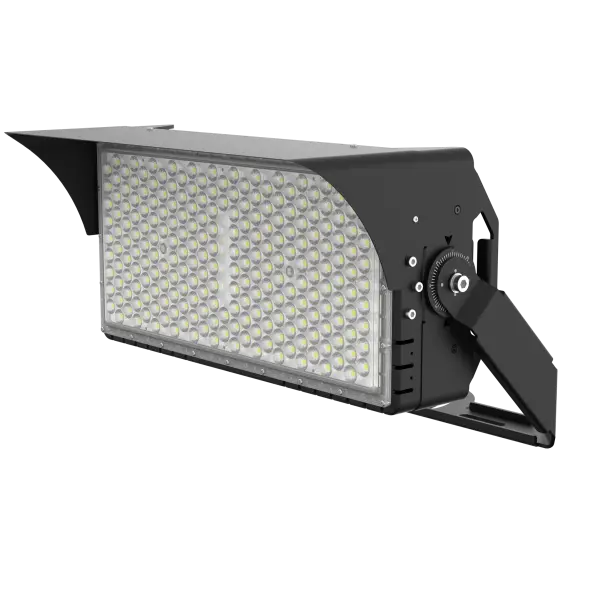

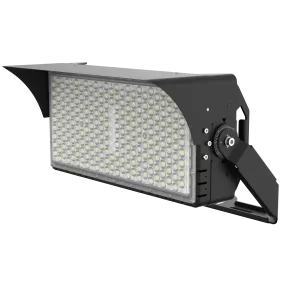

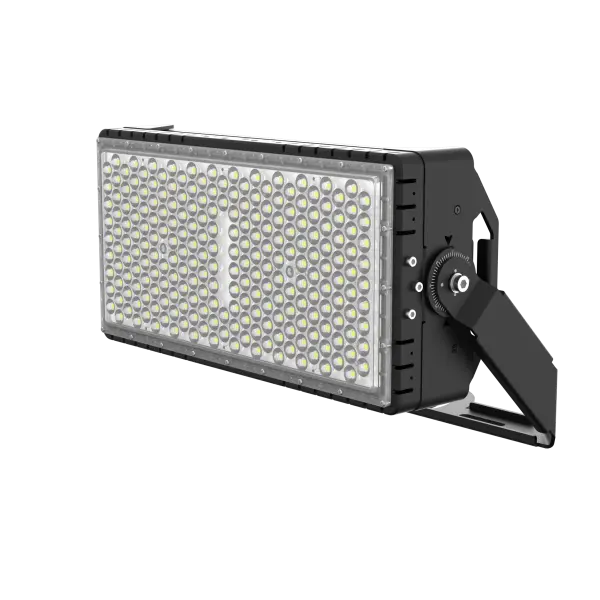

This 500 Watt High Mast LED Flood light GEN5 series manufactured by Haichang Optotech is patent designed with wireless powerful illumination over large expansive landscape, commercial and industrial areas that require reliable coverage from extremely high heights.
Features of Haichang High Mast LED Flood lights HML-GEN5-500W
- Patented design
- Wide coverage
- Highly-transparent UV resistant PC lens with 15°~90° professional light distribution for various applications, Highly-transparent, tempered glass diffuser
- IP66 weatherproof rating, IK10 shock resistance
- Meanwell, Sosen or Inventronics branded driver
- Philips Lumileds 3030 or Osram 15D LED Chip, 3000K-6500K CCT, high efficiency 170Lm/W, CRI Ra>70/80/90, SDCM <5
- 1100 Aluminum alloy housing with high purity and fin design. Much bigger heat dissipation area than die-casted aluminum
- Easy installation: Bracket angle adjustable to reach different installation direction
- 5mm thick Bracket, resistant of 17 degree strong wind
- Wires are hidden inside anti-UV nylon sleeve to avoid aging
- Multiple control options: Photocell sensors for automatic dusk-to-dawn operation
- Motion sensors: dimming to only 20% light output during unoccupied time
- Multiple Dimming control options: DALI, D4i, 0-10V, DMX
- 50,000+ hour lifespan which eliminates the frequent ballast and bulb replacements usually required by traditional high-intensity discharge lighting systems
- 5 years solid warranty
Technical data of Haichang High Mast LED Flood lights HML-GEN5-500W
Model: HML-GEN5-500W
Power: 500W
Size: 556*407*157mm
Luminous Flux: 85000LM±10%
Light efficiency: 170Lm/W
Input voltage: AC100-277V 50-60HZ, PF>0.95
CRI: Ra>70
Beam angle: 15D/20D/30D/40D/60D/90D/Asymmetric Lens 130*30D
Color temperature: 2700K-3000K, 4000K-4500K, 6000K-6500K
Standard deviation of color matching: SDCM<5
Light decay: <2%/3000H
Lifespan: L90B20@>50000h
SwitchingCycles: ＞100,000times
Starting time: <0.5s
Light body: 1100 Aluminum alloy
Lens: Highly-transparent UV resistant PC lens
Protection: IP66, IK10 shock resistance
Ambient temperature range: -40°C ~ +50 °C
Mounting location: Wall, Pole, Bracket
Typical applications of Haichang High Mast LED Flood light HML-GEN5-500W
High Mast LED Flood Lights are designed to illuminate large outdoor areas includes highways, roadways, airports, docks, wharf, container ports and shipyards, railway yards and stations, sports complexes and stadiums, Football Fields, industrial facilities, parking lots and car parks, construction sites, Tower Cranes, event venues and so on. Also, they are widely used in storage facilities, security perimeters, power generation facilities, prison complexes, mining sites, military and defense facilities and highway interchanges where consistent illumination is extremely critical for safety and operation. As an experienced LED flood lights manufacturer in China, our high mast floodlights can save you lots of electricity bill while quite safe to use at extremely low maintenance cost.
