Outstanding features of COB LED tape 320LED 480LED 512LED Free cut Single color LED strip lights:
Continuous and Uniform Lighting
Dotless, 0 Hot Spots
Free cut or Field Cuttable
Brighter Than Traditional Strips
Dimmable
Daisy Chainable for longer runs: two 16’ units can be installed back to back for a total of 32’ without repower.
Easily Configurable through connectors and accessories
SDCM≤3 to ensure color consistency
180°beam angle offers uniform lighting.
5V/12V/24V/48V optional.
3-5 years warranty
Watch video on How to Free Cut COB strip lights:
Difference between COB LED Strips and SMD LED Strips
The main difference between COB and SMD strip lights is light density. In a Chip on Board (COB) strip light, also known as a dotless strip light, the individual LED diode chips are printed directly on PCB. These diodes are positioned closely together and coated with a phosphor gel, which gives it a dotless appearance and high-density emission.
In a traditional SMD (Surface Mounted Diode) light strip, the LED chips are soldered onto PCB and placed with spaces between them. The space between chips results in a lower-density light emission. Whether you choose to use a COB strip or an SMD strip will depend on the application and desired aesthetic appeal.
Super narrow cuttable length to support freely configurable in length for precise field installation. SDCM ≤ 3 to ensure color consistency. 180°beam angle, dimmable function. Higher density of LEDs, resulting in a brighter and more uniform light output.
Technical data of 8mm 480LED Single color COB LED strips:
Cuttable length: Free cut
PCB width: 8mm
Input voltage: DC12V/24V
CRI(Ra): >90
CCT: 2700K/3000K/4000K/6000K
Power: 5W, 10W, 15W
Luminous Flux: 400Lm, 800Lm, 1200Lm
Light efficiency: 80Lm/W
Max. run length: 5M
Beam angle: 180°
LED quantity: 480LEDs/m
Working temperature: -25℃~+45℃
LED lifetime: 50,000 hours
PCB width: 8mm
Input voltage: DC12V/24V
CRI(Ra): >90
CCT: 2700K/3000K/4000K/6000K
Power: 5W, 10W, 15W
Luminous Flux: 400Lm, 800Lm, 1200Lm
Light efficiency: 80Lm/W
Max. run length: 5M
Beam angle: 180°
LED quantity: 480LEDs/m
Working temperature: -25℃~+45℃
LED lifetime: 50,000 hours
IP degree: IP20, IP54, IP65, IP67, IP68
Technical data of 10mm 480LED Single color COB LED strips:
Cuttable length: 25mm, 50mm, 100mm
PCB width: 10mm
Input voltage: DC12V24V/48V
CRI(Ra): >90
CCT: 2700K/3000K/4000K/6000K
Power: 5W, 10W, 15W
Luminous Flux: 600Lm, 1200Lm, 1800Lm
Light efficiency: 120Lm/W
Max. run length: 5M
Beam angle: 180°
LED quantity: 480LEDs/m
Working temperature: -25℃~+45℃
LED lifetime: 50,000 hours
PCB width: 10mm
Input voltage: DC12V24V/48V
CRI(Ra): >90
CCT: 2700K/3000K/4000K/6000K
Power: 5W, 10W, 15W
Luminous Flux: 600Lm, 1200Lm, 1800Lm
Light efficiency: 120Lm/W
Max. run length: 5M
Beam angle: 180°
LED quantity: 480LEDs/m
Working temperature: -25℃~+45℃
LED lifetime: 50,000 hours
IP degree: IP20, IP54, IP65, IP67, IP68
Technical data of 8mm 512LED Single color COB LED strips:
Cuttable length: 15.62mm
PCB width: 8mm, 10mm
Input voltage: DC24V
CRI(Ra): >90
CCT: 2700K/3000K/4000K/6000K
Power: 10W, 14W
Luminous Flux: 1200Lm, 1600Lm
Light efficiency: 120Lm/W
Max. run length: 5M
Beam angle: 180°
LED quantity: 480LEDs/m
Working temperature: -25℃~+45℃
LED lifetime: 50,000 hours
PCB width: 8mm, 10mm
Input voltage: DC24V
CRI(Ra): >90
CCT: 2700K/3000K/4000K/6000K
Power: 10W, 14W
Luminous Flux: 1200Lm, 1600Lm
Light efficiency: 120Lm/W
Max. run length: 5M
Beam angle: 180°
LED quantity: 480LEDs/m
Working temperature: -25℃~+45℃
LED lifetime: 50,000 hours
IP degree: IP20, IP54, IP65, IP67, IP68

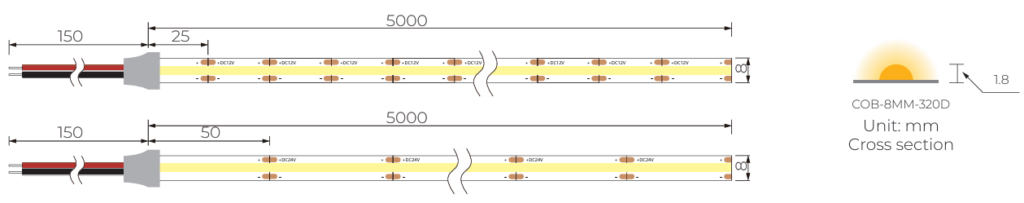

Technical data of 8mm 320LED Single color COB LED strips:
Roll to roll technology, maximum production length is up to 50m/roll without soldering
Cuttable length: 25mm/50mm
PCB width: 8mm
Input voltage: DC12V/24V
CRI(Ra): >90
CCT: 2700K/3000K/4000K/6000K
Power: 10W
Luminous Flux: 1200Lm
Light efficiency: 120Lm/W
Max. run length: 5M
Beam angle: 180°
LED quantity: 320LEDs/m
Working temperature: -25℃~+45℃
LED lifetime: 50,000 hours
Cuttable length: 25mm/50mm
PCB width: 8mm
Input voltage: DC12V/24V
CRI(Ra): >90
CCT: 2700K/3000K/4000K/6000K
Power: 10W
Luminous Flux: 1200Lm
Light efficiency: 120Lm/W
Max. run length: 5M
Beam angle: 180°
LED quantity: 320LEDs/m
Working temperature: -25℃~+45℃
LED lifetime: 50,000 hours
IP degree: IP20, IP54, IP65, IP67, IP68
Applications of COB LED tape 320LED 480LED 512LED Free cut Single color RGB strip lights Dotless:
The COB LED tapes lights 320LED 480LED 512LED Free cut strip lights are widely used in:
1. Architectural decorative lighting for canopy, corridor, window, archway, bridge edge lighting
2. Back lighting or edge lighting for signage letters and channel letters
3. Cove lighting, concealed lighting in home rooms or yard
4. Replace traditional under cabinet lights
4. Decorative lighting for festivals, events, shows, exhibitions
5. Contour lighting: stairway, aisle
6. DIY lighting for indoor use
