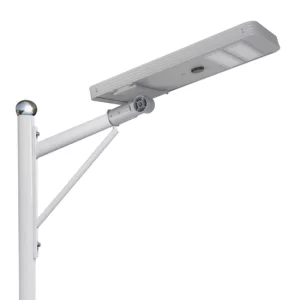

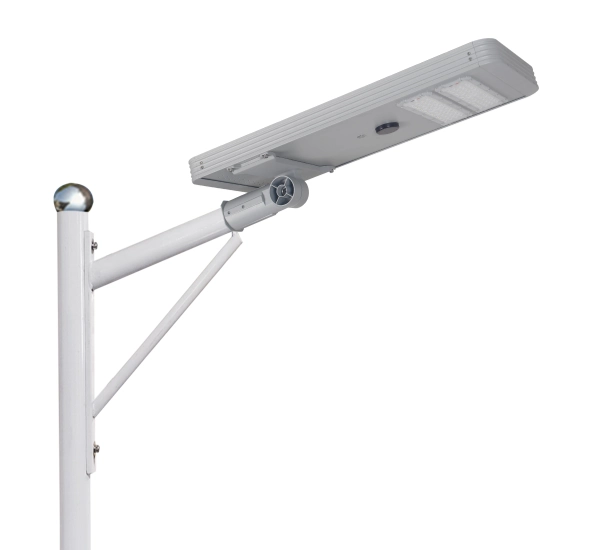

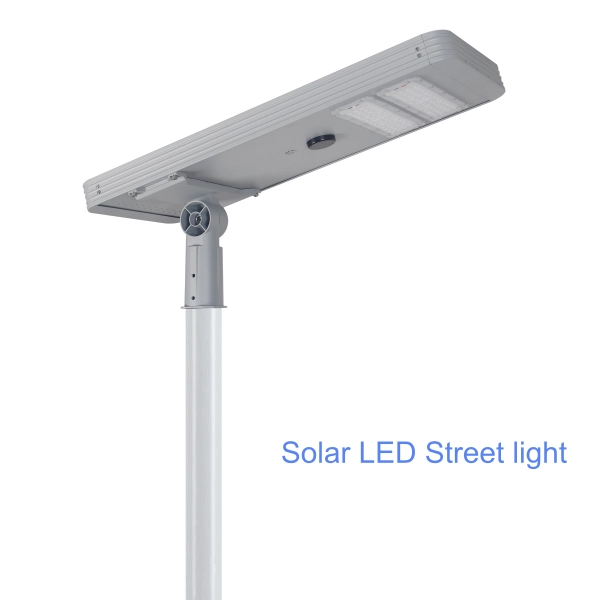

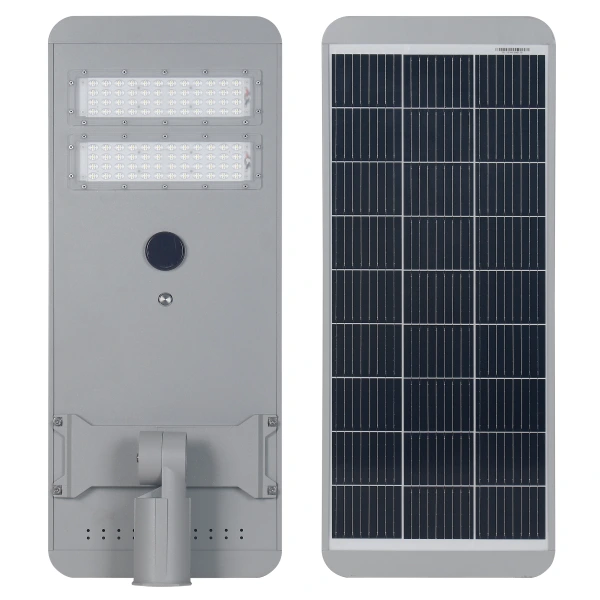

Features – Discover the benefits of Outdoor Solar LED Street lights SSL-T300A
- Solar charging, 0 Electricity bill
- Intelligent MPPT charging controller
- Intelligent light control: Auto ON/OFF: automatically turn off at dawn, automatically turn on at night
- Radar(Microwave) or PIR Motion sensor
- High quality LiFePO4 Lithium Battery (Lithium iron phosphate battery), 3-5 cloudy and rainy days, large capacity, high temperature resistant and low self-discharge rate
- Time control: 1H100% 3H 70% 4H50% 4H30% (Totally 12 hours)
- Auto ON/OFF: automatically turn off at dawn, automatically turn on at night
- Mono crystal silicon solar panel with high efficiency >22%
- High lumen LED chips, high brightness
- Support customization
- Galvanized Die-cast Aluminum housing, corrosion resistant, excellent heat sinking
- Die-cast Aluminum Bracket with angle adjustable
- IP65, Waterproof, Dustproof, Extreme Weather Resistance
- IK08 rated Impact Resistant and Vandal Resistant, high reliability and durability
- No wiring, cordless
- 3 years warranty

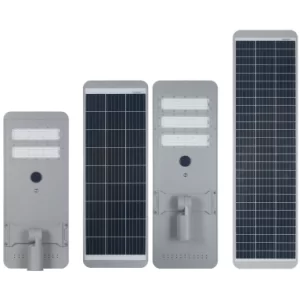

Technical data of Outdoor Solar LED Street lights SSL-T300A
Model: SSL-T300A

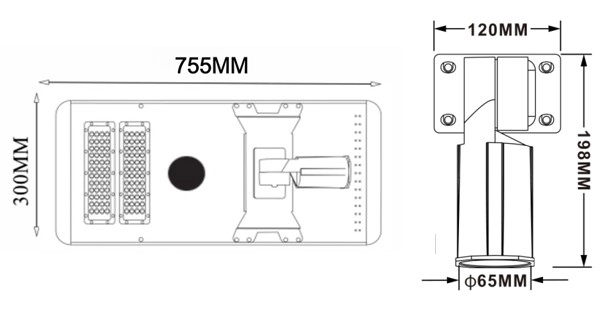

Size: L755*W300*H125mm
Installation Height: 5-6m
Installation Distance 10-15m
Light body: Galvanized Die-cast Aluminum alloy
Power: 40W max
Battery: Lithium Battery, 3.2V 45AH
Solar Panel: 5V,40W Monocrystal silicon solar panel, 10 years lifetime
Charging time: 5-8 Hours Sunlight Directly
Discharge time: 3-5 rainy days
PIR sensor 10-12m,140 degrees angle
Control mode time control + light sensor control+ motion sensor
LED Chip: SMD3030 96pcs, 90-200Lm/W
Luminous flux >3600Lm
Beam angle: 70°+140°
CCT: 3000-3500K, 4000-4500K, 6000-6500K
IP degree: IP65
Working time: 12 hours
Working temperature: -20℃~60℃

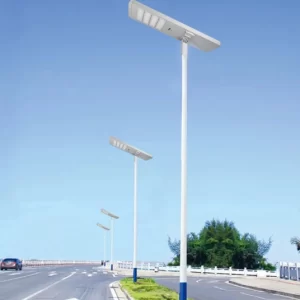

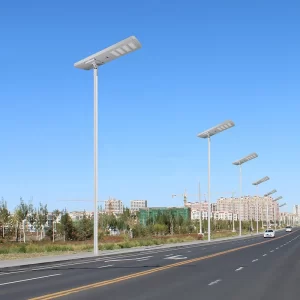

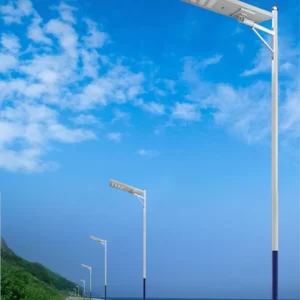

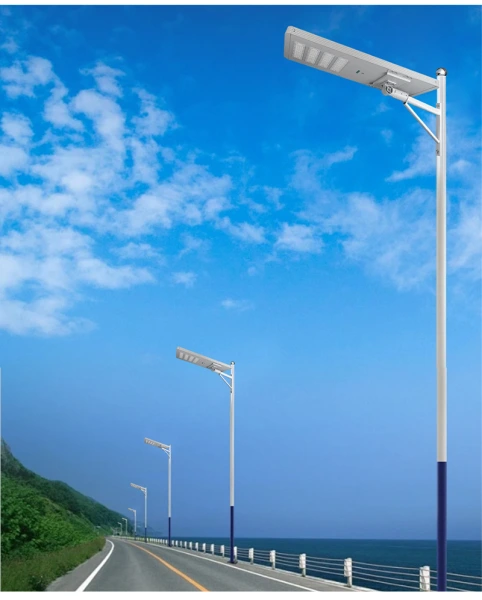

Typical lighting applications for the Integrated Solar LED Street lights SSL-T300A
It can be widely used in outdoor public areas, including city streets, city main roads, pedestrians, pathways, sidewalks, roadways, parks, gardens, squares, villas, car parking lots, coastals, regions, Marinas, islands, walkways, bike paths, exits, farms, ranches, mining areas, industrial areas. Also, it can be used as fence lighting, campus lighting, ramp lighting, private residential lighting, dock lighting, remote area lighting, farm and ranch lighting.
