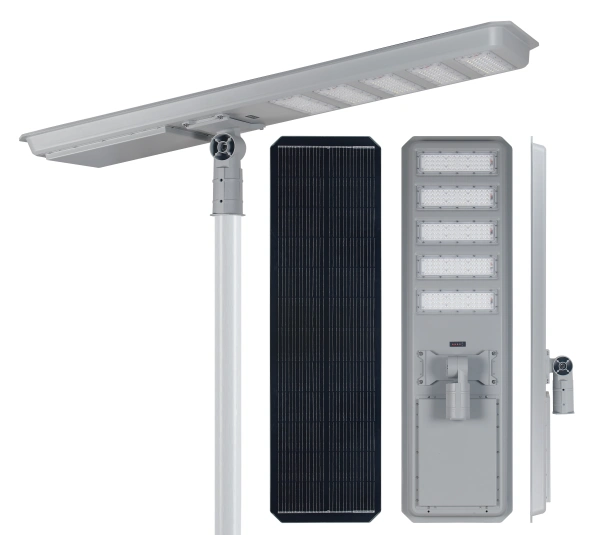

All-in-One Integrated Solar LED Street lights SSL-T35 100W 1

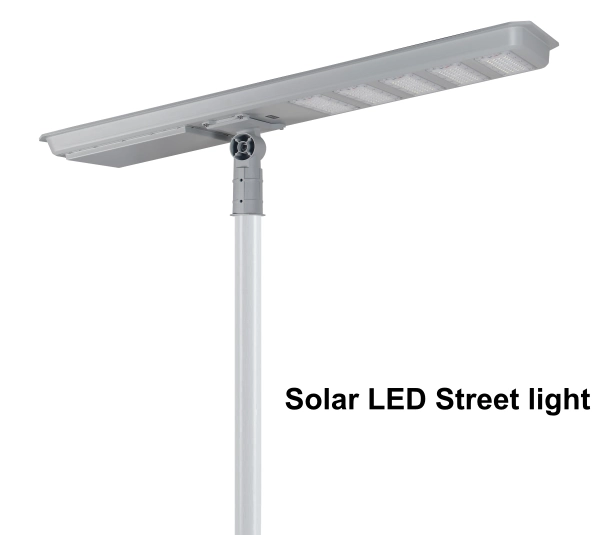

All-in-One Integrated Solar LED Street lights SSL-T35 100W 2

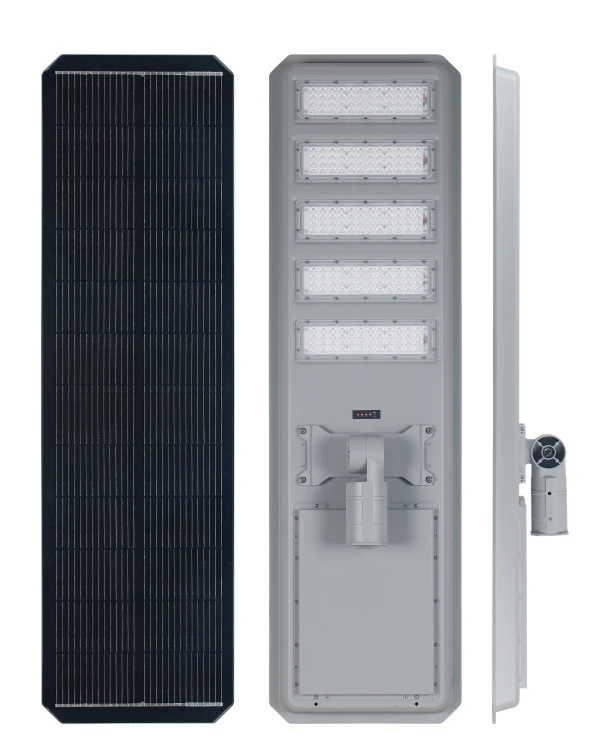

All-in-One Integrated Solar LED Street lights SSL-T35 100W 3

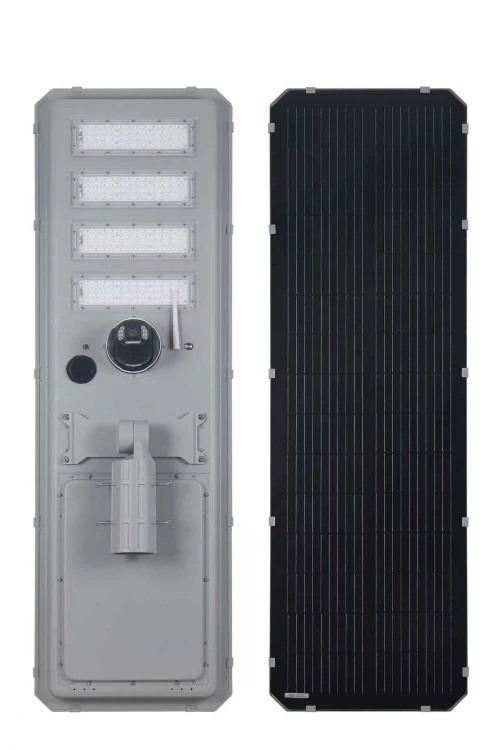

All-in-One Integrated Solar LED Street lights SSL-T35 100W 4

All-in-One Integrated Solar LED Street lights SSL-T35 1

All-in-One Integrated Solar LED Street lights SSL-T35 Light and Radar control Auto-ON/OFF LiFePO4 Lithium Battery Waterproof Durable Poles Outdoor Streets parks sidewalks roadways gardens walkways fences pathways pedestrians docks lighting - Image 8

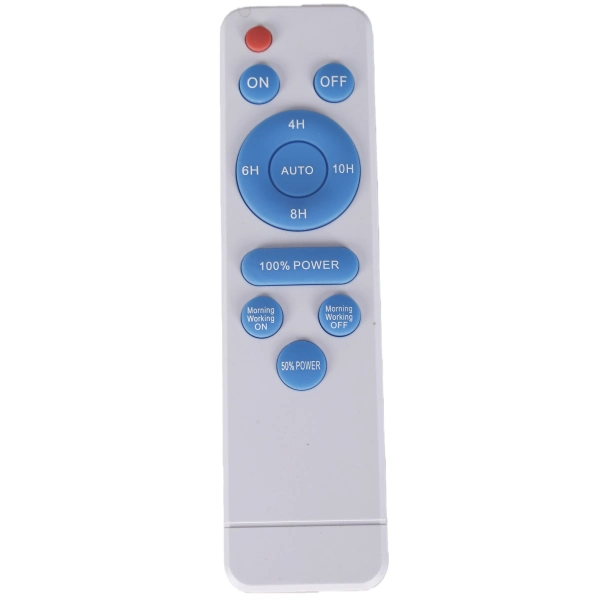

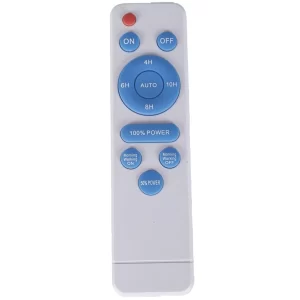

All-in-One Integrated Solar LED Street lights remote controller

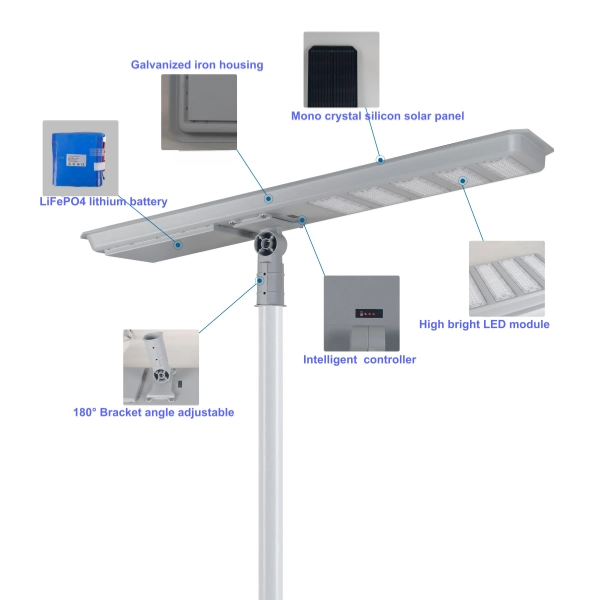

All-in-One Integrated Solar LED Street lights SSL-T35 components

All-in-One Integrated Solar LED Street lights SSL-T35 project 1

All-in-One Integrated Solar LED Street lights SSL-T35 project 2

All-in-One Integrated Solar LED Street lights SSL-T35 project 3

All-in-One Integrated Solar LED Street lights SSL-T35 Light and Radar control Auto-ON/OFF LiFePO4 Lithium Battery Waterproof Durable Poles Outdoor Streets parks sidewalks roadways gardens walkways fences pathways pedestrians docks lighting

Category: Solar LED Street lights Tags: all in one, integrated street lights, outdoor led lights, Solar LED, solar led street lights, solar led yard light Brand: Haichang Optotech

Description

Features – Discover the benefits of Solar LED Street lights

Integrated Solar LED Street lights offers a seamless sleek design
Solar charging, 0 Electricity bill
Intelligent MPPT charging controller
Intelligent light control: Auto ON/OFF: automatically turn off at dawn, automatically turn on at night
Radar(Microwave) or PIR Motion sensor
High quality LiFePO4 Lithium Battery (Lithium iron phosphate battery), 3-5 cloudy and rainy days, large capacity, high temperature resistant and low self-discharge rate
Time control: 1H100% 3H 70% 4H50% 4H30% (Totally 12 hours)
Auto ON/OFF: automatically turn off at dawn, automatically turn on at night
Mono crystal silicon solar panel with high efficiency >22%
High lumen LED chips, high brightness
Support customization
Galvanized Aluminum or Iron housing, salty corrosion resistant, excellent heat sinking
Bracket angle adjustable
IP65, Waterproof, Dustproof, Extreme Weather Resistance
IK08 Vandal Resistant: durability and impact resistance
Reliable and durable
No wiring, cordless
3 years warranty

Technical data

Model: SSL-T35

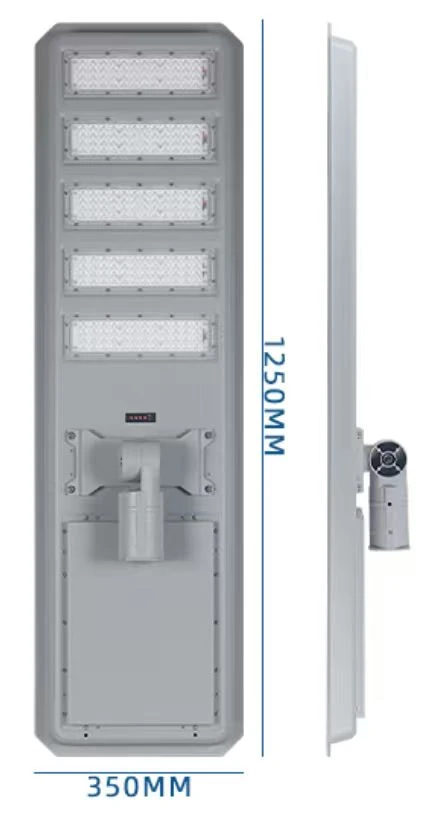

Size: L1250*W350*H150mm

Installation Height: 8-10m

Installation Distance 15-20m

Light body: Galvanized iron housing, corrosion resistant, excellent heat sinking

Power: 100W

Battery: Lithium Battery, 3.2V 80AH, (12.8V version available for choice)

Solar Panel: 5V,80W Monocrystal silicon solar panel, 10 years lifetime

Charging time: 5-8 Hours Sunlight Directly

Discharge time: 3-5 rainy days

PIR sensor 10-12m,140 degrees angle

Control mode time control + light sensor control+ motion sensor

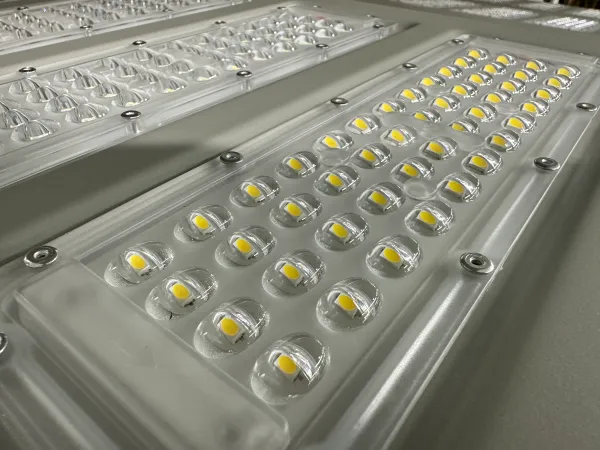

LED Chip: SMD3030 240pcs, 120Lm~200Lm/W

Luminous flux >12000Lm

Beam angle: 70°+140°

CCT: 3000-3500K, 4000-4500K, 6000-6500K

IP degree: IP65

Working time: 12 hours

Working temperature: -20℃~60℃

Typical lighting applications for the Integrated Solar LED Street lights

It can be widely used in outdoor public areas, including city streets, city main roads, pedestrians, pathways, sidewalks, roadways, parks, gardens, squares, villas, car parking lots, coastal regions, Marinas, islands, walkways, bike paths, exits, farms, ranches, mining areas, industrial areas. Also, it can be used as fence lighting, campus lighting, ramp lighting, private residential lighting, dock lighting, remote area lighting, farm and ranch lighting.
