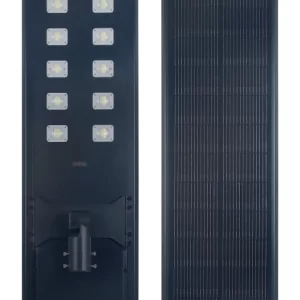

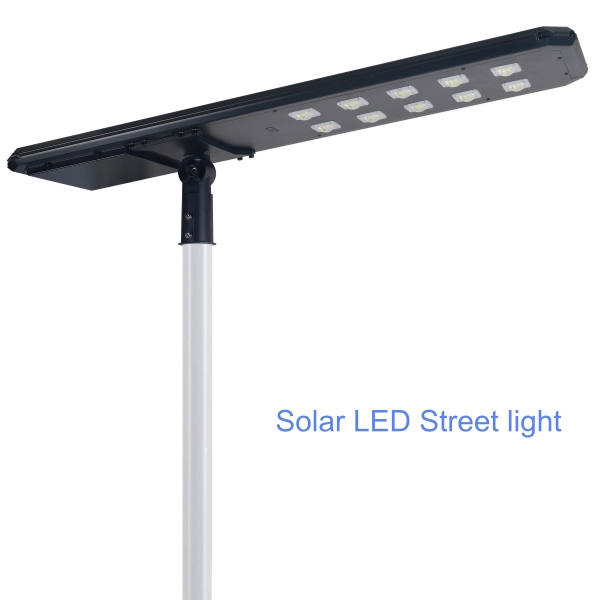

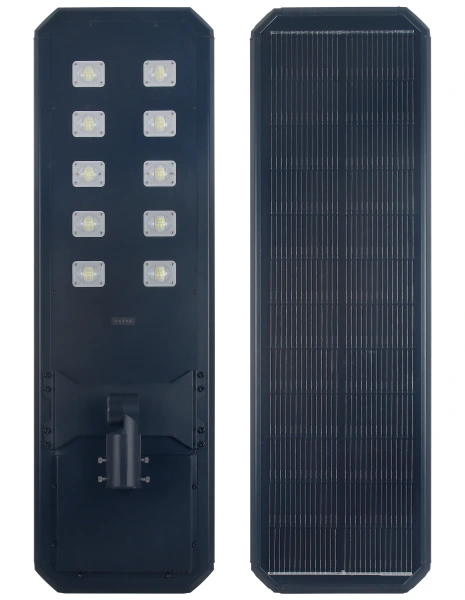

Features – Discover the benefits of Outdoor Solar LED Street light SSL-AF389B 100W
This 100W Integrated solar led street light is special designed for Africa outdoor landscape lighting market. It is the best solar LED street solution due to their outstanding features such as solar charging and intelligent MPPT charging controller.
- Seamless design, eliminating gaps and prevent bird nesting
- Solar charging, 0 Electricity bill
- Intelligent MPPT charging controller
- Intelligent light control: Auto ON/OFF: automatically turn off at dawn, automatically turn on at night
- Radar(Microwave) or PIR Motion sensor
- High quality LiFePO4 Lithium Battery (Lithium iron phosphate battery), 3-5 cloudy and rainy days, large capacity, high temperature resistant and low self-discharge rate
- Time control: 1H100% 3H 70% 4H50% 4H30% (Totally 12 hours)
- Auto ON/OFF: automatically turn off at dawn, automatically turn on at night
- Mono crystal silicon solar panel with high efficiency >22%
- High lumen LED chips, high brightness
- Support customization
- Galvanized Die-cast Aluminum housing, corrosion resistant, excellent heat sinking
- Die-cast Aluminum Bracket with angle adjustable
- IP65, Waterproof, Dustproof, Extreme Weather Resistance
- IK08 rated Impact Resistant and Vandal Resistant, high reliability and durability
- No wiring, cordless
- 3 years warranty
Technical data of the Integrated Solar LED Street lights SSL-AF389B 100W
Model: SSL-AF389B
Size: L1281*W389*H65mm
Installation Height: 8-10m
Installation Distance: 20-25m
Light body: Galvanized Die-cast Aluminum alloy
Power: 100W max
Battery: Lithium Battery, 3.2V 75AH
Solar Panel: 5V, 80W Monocrystal silicon solar panel, 10 years lifetime
Charging time: 5-8 Hours Sunlight Directly
Discharge time: 3-5 rainy days
PIR sensor 10-12m,140 degrees angle
Control mode time control + light sensor control+ motion sensor
LED Chip: SMD5050 140pcs, 100-160Lm/W
Luminous flux >10000Lm
Beam angle: 70°+140°
CCT: 3000-3500K, 4000-4500K, 6000-6500K
IP degree: IP65
Working time: 12 hours
Working temperature: -20℃~60℃
Typical lighting applications for Integrated Solar LED Street lights SSL-AF389B 100W
It can be widely used in outdoor public areas, including city streets, city main roads, pedestrians, pathways, sidewalks, roadways, parks, gardens, squares, villas, car parking lots, coastal, regions, Marinas, islands, walkways, bike paths, exits, farms, ranches, mining areas, industrial areas. Also, it can be used as fence lighting, campus lighting, ramp lighting, private residential lighting, dock lighting, remote area lighting, farm and ranch lighting.
