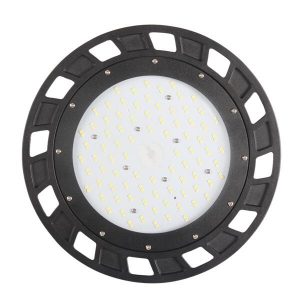

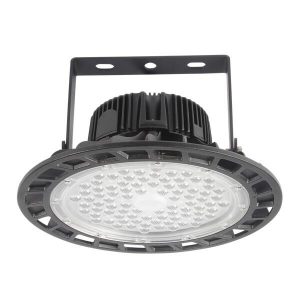

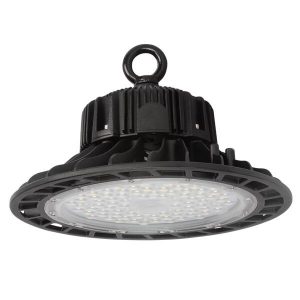

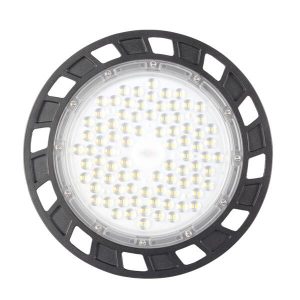

The UA9 Series 200W UFO LED High Bay light for Warehouses and Supermarkets has up to 190Lm/W high lumen efficiency with Philips Lumileds and Meanwell drivers. The UFO LED high bay light UA9 series is newly designed with high standard for high bay lighting in factories, workshops, warehouses, gyms, gas stations, supermarkets, parking garages, airports, shopping malls and other areas. It is housed by ADC12 heatsinking aluminum with thermal convection design. The protection degree is IP65 waterproof.
Features:
- High efficacy: 130LM/W 150LM/W 170LM/W 190LM/W
- Diecast aluminum, tempered glass/lens
- Lumileds/San’an LED, high lumen, long-lasting stability
- Meanwell or other branded LED driver.
- Dimming optional
- Maintenance free
- Aluminum or PC reflector for option
- Integrated control available
- Input Voltage: AC100-277V, 50 /60Hz
- Protection: IK10/IP65
- CE & RoHS compliant
- 5 years warranty
Technical data:
| Model | Power (W) |
LED | CCT | Voltage /Current | Lumens (LM) | Beam Angle | Dimension (mm) |
| HB-200W-UA9-WW/NW/CW | 200W | 2835 | 2800-3200K 3750-4250K 4750-5250K 5700-6500K |
AC100-277V | 140LM/W | 60°/90°/120° | ø345*150mm |
Multiple light distribution
60°/90°/120° beam angle optional for 200W UFO LED high bay fixtures. These high bay 200W UFO LED lights offer efficient illumination, perfect for areas needing high bay lighting.
Production and aging:
Applications: These versatile LED lights are suitable for a range of environments. Due to their versatility, 200W UFO LED types are commonly used in warehouses and industrial facilities where bright lighting is essential.
