Aimed to replace floodlights with halogen lamps, Haichang 100W GEN3 Waterproof Lap LED Floodlight with Pir sensor applies DOB solution, innovative security clip design and breather design to achieve stable performance for minimum 50,000 hours lifetime. Unlike common LED floodlights in the market, there will be completely vapor free on these waterproof lap LED flood lights. PIR sensor, Microwave sensor, Photocell light sensor and CCT/brigthness dimmable functions are also optional on these 100w led flood light fixtures. The robust and waterproof light body with IP65/2KV protection, super bright light output as well as extremely low energy consumption makes these slim LED flood lights perfect solution for outdoor landscape lighting and architectural lighting, typically in gardens, balconies, bridges, historical buildings, convention centers, plant and other public areas.
Features:
DOB solution(Driver On Board), longer lifetime, more economical
Innovative security clip to prevent glass cover from falling off
Breather design, no water vapor or mist
Bending bracket for easy installing
Super bright SMD LED. Beam Angle 120°
High lumens up to 90lm/W
ADC12 Aluminum alloy housing+ tempered glass
IP65, Waterproof & Weatherproof
Anti surge 2KV
Collision protection level: IK08
Input AC200-240V,50-60Hz
Optional functions: PIR sensor, Microwave motion sensor, Photocell light sensor,
CCT adjustable 3000K/4000K/6500K, brightness dimmable 1% to 100%
Anti-acid, anti-corrosion, no UV or IR radiation
50,000 hours long lifespan, low power consumption, Eco-friendly
Compliant with CE and RoHS standard
2 years warranty
Innovative security clip
Designed to prevent glass from falling off when glue is not sticky anymore after used for a long time. It is our main selling point, nearly 80% of customers chose us because of it.

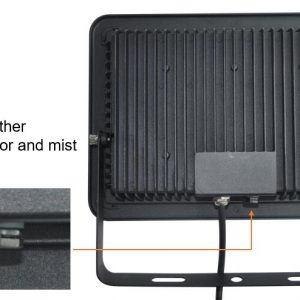

Breather
To keep vapor/mist out of the fixture, solving the vapor problem with traditional floodlight

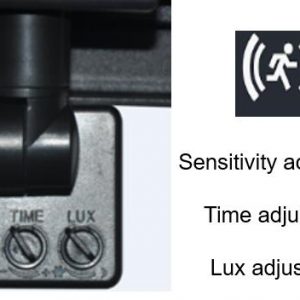

Intelligent and Smart – PIR Sensor
Sensitivity adjustable
Lux adjustable
Time adjustable

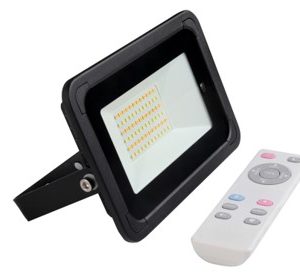

RGB controller
CCT adjustable 3000K/4000K/6500K
1% to 100% dimmable
Test Report:
Technical data:
| Model | Power (W) |
LED | CCT | Lumens (LM) |
PF | IP Rate |
G.W /piece |
Measurement (mm) |
| FL-100W-GEN3 | 100W | 2835 SMD LED |
2700-3200K 4000-4500K 6000-7000K |
90LM/W | >0.95 | IP65 | 1.8kg | 318*280*53mm |
Dimensions:
Packaging:
| Model | Power (W) |
Dimension (mm) |
QTY (pcs) |
G.W. /Carton |
Net Weight |
| FL-100W-GEN3 | 100W | 318*280*53mm | 5 | 10kg | 1.8kg |

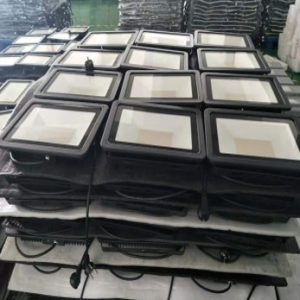

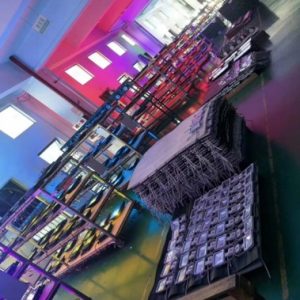

Production and aging:
Applications:
These 100W GEN3 Waterproof Lap LED Flood Light with PIR/Motion/Light Sensor Outdoor Garden Security Lights can be widely used in landscape lighting, stage lighting, billboard lighting, atmosphere lighting, history building, outdoor wall lighting, indoor part lighting, greening commercial lighting, such as: gardens, parks, billboards, buildings, lawns, tree, projects, bars, ballrooms, showrooms, supermarkets, sculptures, symbols, gymnasiums, squares, advertisement board, parking lots, factories, docks, etc..
